| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,500 pcs
|
2500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

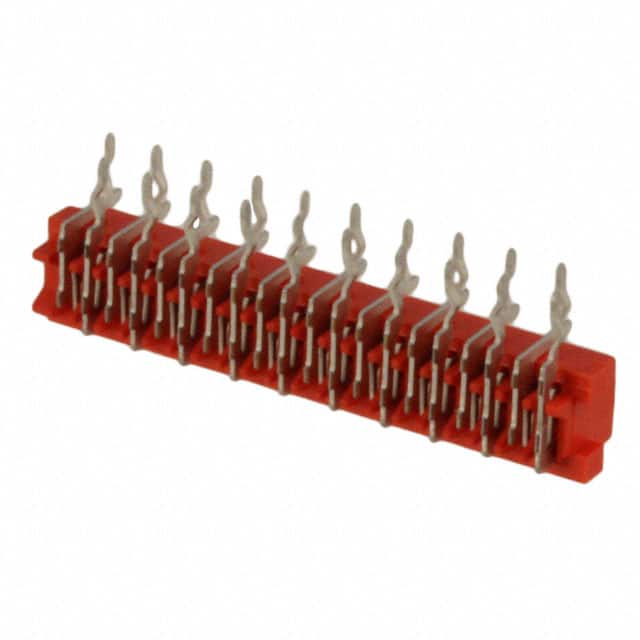

The 2-215460-0 is a 20-position rectangular receptacle connector from TE Connectivity, designed for board-to-board or cable-to-board connections. It features a forked contact type with tin contact finish, ensuring reliable electrical connections. The connector has a 2.54mm pitch and 2 rows, with a row spacing of 2.54mm, making it compatible with standard 0.100" header interfaces.
This through hole, right angle mounting style allows for low-profile connections on PCBs. The termination is kinked pin, solder, providing secure mechanical attachment. The insulation is red in color with a push-pull fastening type for easy mating and unmating. The insulation height is 5.80mm, and contact length is 3.10mm.
Electrical ratings include a voltage rating of 100VDC and an operating temperature range of -40°C to 105°C, making it suitable for a variety of environments. The material has a flammability rating of UL94 V-0, ensuring safety in applications. All 20 positions are loaded, and the connector is designed for use with standard 2.54mm pitch headers.
This connector is commonly used in industrial, consumer, and commercial electronics where reliable interconnections are required. The tin finish provides good solderability and corrosion resistance. The right angle orientation allows for space-saving designs on PCBs.
20 positions.
2.54mm (0.100").
100VDC.
Through hole, right angle.
-40°C to 105°C.
Tin.
Red.
