| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,120 pcs
|
1120 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
24 pcs
|
24 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Style | |
| Tape & Reel | |
| Termination |

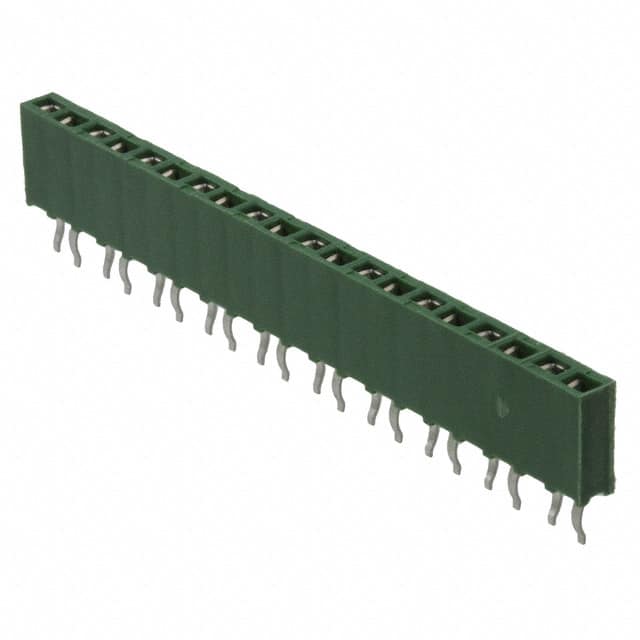

The TE Connectivity part number 2-215297-0 is a 20-position single row receptacle connector designed for board-to-board applications. It utilizes female socket contacts with a push-pull fastening type for secure connections.
The connector has a 2.54mm (0.100 inch) pitch and is mounted via through hole with kinked pin solder termination. The insulation height is 7.00mm and the contact length is 3.10mm. Contact finish is tin with a thickness of 31.5µin (0.80µm).
The housing is molded from UL94 V-0 rated material available in either black or green. The single row configuration and compact 2.54mm pitch make it suitable for dense PCB layouts.
Typical applications include board-to-board interconnects in industrial control, automation, and general electronic assemblies where a reliable low-profile connection is needed.
20 positions.
2.54mm (0.100 inch).
Through hole mounting.
Tin, with a thickness of 31.5µin (0.80µm).
Push-pull.
Black or Green.
Yes, RoHS3 Compliant according to existing data.
