| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
116 pcs
|
116 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Layout, Typical | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Pitch | |
| Tape & Reel | |
| Termination |

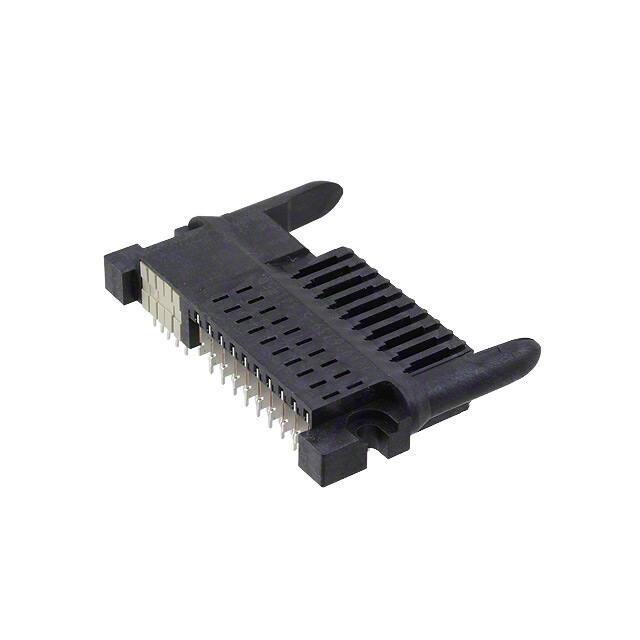

The TE Connectivity 2-1926739-5 is a specialized backplane receptacle connector designed for high-density board-to-board applications. It offers 35 positions with a contact layout of 25 signal and 10 power contacts, providing a mixed signal and power interface. The connector features a 2.00mm pitch and uses press-fit termination for reliable solderless connections.
This connector supports board edge, through hole, and right angle mounting orientations, offering flexibility in PCB design. The contacts are finished with gold or gold-palladium to a thickness of 30.0 microinches (0.76 micrometers), ensuring excellent conductivity and corrosion resistance. A guide pin feature aids in alignment during mating.
The housing is black and the connector is RoHS3 compliant with an MSL of 1 (unlimited). It is also REACH unaffected. The part is suitable for use in backplane and midplane applications where a compact, high-reliability interconnect is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $16.35 | $16.35 |
| 10+ | $13.89 | $13.89 |
| 24+ | $13.24 | $13.24 |
| 48+ | $12.91 | $12.91 |
| 120+ | $12.03 | $12.03 |
| 264+ | $11.83 | $11.83 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 35 positions, with a contact layout of 25 signal and 10 power contacts.
The pitch is 2.00mm (0.079 inches).
The connector supports board edge, through hole, and right angle mounting.
The termination is press-fit.
The contact finish is gold or gold-palladium with a thickness of 30.0 microinches (0.76 micrometers).
The connector is listed as RoHS3 compliant, though this is unverified.
The MSL is 1 (unlimited), though this is unverified.
