| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,000 pcs
|
4000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Battery Cell Size | |
| Battery Series | |
| Battery Type, Function | |
| Height Above Board | |
| Lead Style | |
| Mounting Type | |
| Number of Cells | |
| SVHC Present | |
| Style | |
| Termination Style |

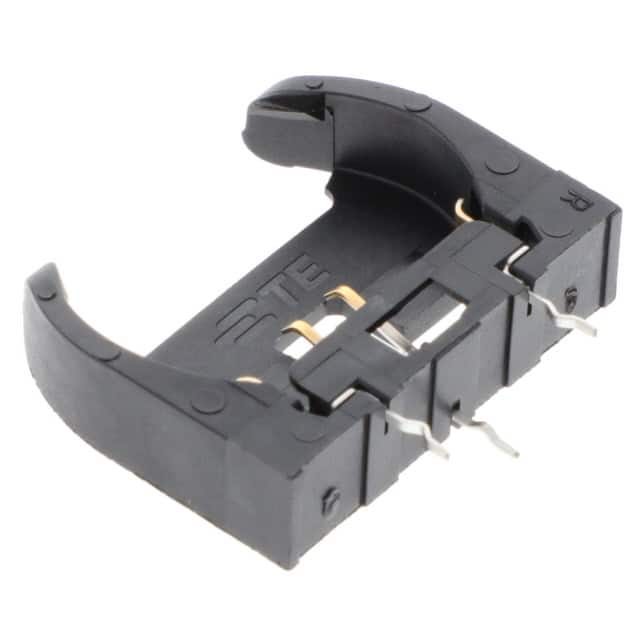

The TE Connectivity 2-1775485-1 is a battery holder designed for a single 20mm coin cell battery, such as the 2032 series. It features an open frame holder style with PC pin termination for through hole PCB mounting.
The holder provides a secure connection for a coin cell battery in a compact footprint. The through hole mounting style ensures mechanical stability on the PCB. The open holder design allows for easy battery insertion and replacement.
This holder accepts a 20mm coin cell battery, specifically the 2032 series.
This battery holder is designed for a single cell.
The termination style is PC Pin, suitable for through hole soldering.
This battery holder is designed for through hole PCB mounting.
The height above the PCB is 18.5mm (0.730 inches).
