| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

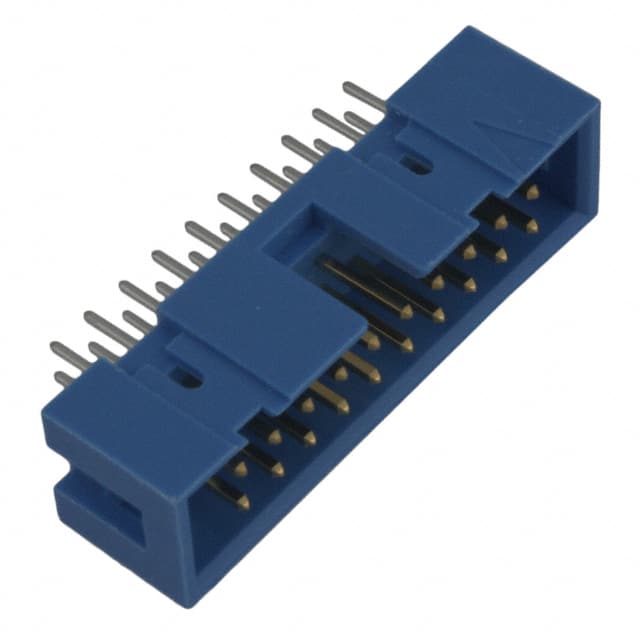

The TE Connectivity 2-1761679-7 is a rectangular connector header designed for board-to-cable/wire applications. It features 20 positions arranged in 2 rows with a 2.54mm pitch and row spacing. The connector uses male pin contacts made of phosphor bronze with a tin finish (30.0µin thickness). The housing is made of blue polybutylene terephthalate (PBT) with a UL94 V-0 flammability rating. The header is shrouded with a 4-wall design and includes a keying slot for alignment. It has a push-pull fastening type and a through-hole mounting with solder termination. The insulation height is 8.89mm and contact length is 6.10mm. This connector is suitable for applications requiring a reliable, polarized connection in wire-to-board configurations.
20 positions.
2.54mm (0.100").
Through hole.
Phosphor bronze with tin finish (30.0µin).
Polybutylene Terephthalate (PBT) with UL94 V-0 rating.
Yes, it has a shrouded 4-wall design with a keying slot.
Board to cable/wire.
