| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,820 pcs
|
1820 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Length - Mating | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Flammability Rating | |
| Halogen Free | |
| Industrial Grade | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

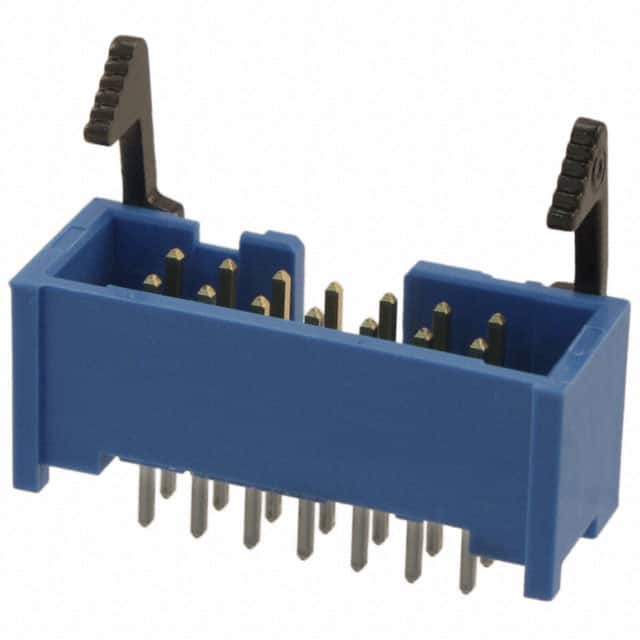

The TE Connectivity 2-1761608-5 is a 14-position, 2-row shrouded header designed for board-to-cable/wire connections. It features a 2.54mm pitch and row spacing, with through-hole mounting and solder termination for reliable PCB attachment.
The header uses phosphor bronze contacts with a tin finish (30µin thickness) and a square contact shape. The mating contact length is 6.02mm. The insulator is blue polybutylene terephthalate (PBT) with a UL94 V-0 flammability rating. A keying slot feature ensures correct mating orientation.
Electrical ratings are 1A per contact and 250VAC. The operating temperature range is -65°C to 105°C. The fastening type includes latch lock/eject hooks (short) for secure cable retention.
14 positions in 2 rows.
2.54mm (0.100") pitch and row spacing.
1A per contact.
250VAC.
Through hole with solder termination.
-65°C to 105°C.
Phosphor bronze contacts with 30µin tin finish.
