| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,600 pcs
|
3600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Storage Temperature | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

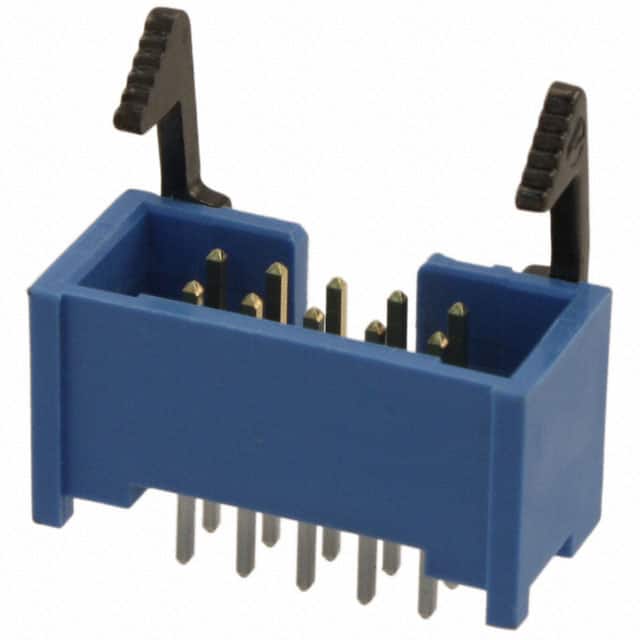

The TE Connectivity 2-1761608-3 is a 10-position, 2-row shrouded header connector designed for board-to-cable/wire applications. It features a 2.54mm (0.100") pitch and row spacing, with through hole solder termination for reliable PCB mounting.
The header is fully shrouded with a 4-wall design and includes short latch lock/eject hooks for secure mating. The insulation is blue polybutylene terephthalate (PBT) with a UL94 V-0 flammability rating, and the insulation height is 10.26mm (0.404"). Contacts are made of phosphor bronze with a 30.0µin (0.76µm) tin finish, and the contact shape is square.
Electrical ratings are 1A per contact at 250VAC, with an operating temperature range of -65°C to 105°C. A keying slot feature is included for polarization. This connector is suitable for a variety of wire-to-board interconnection needs.
The pitch is 2.54mm (0.100").
It has 10 positions in 2 rows.
The current rating is 1A per contact.
The voltage rating is 250VAC.
It uses through hole mounting with solder termination.
The operating temperature range is -65°C to 105°C.
Yes, it is fully shrouded with a 4-wall design and includes latch lock/eject hooks.
