| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
533 pcs
|
533 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

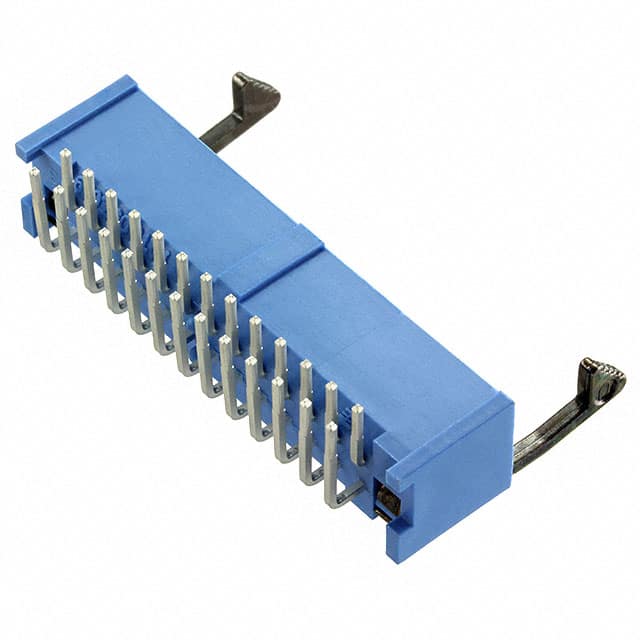

The TE Connectivity 2-1761607-9 is a 26-position male pin header designed for board-to-cable/wire connections. It features a 2.54mm pitch with 0.100" row spacing and a right angle through-hole mounting style. The header is fully shrouded with a 4-wall design and includes a keying slot for proper alignment. Long latch lock/eject hooks provide secure mating and easy unmating.
The contacts are made of phosphor bronze with a tin finish (30.0µin thickness) and are rated for 1A per contact at 250VAC. The insulation is blue polybutylene terephthalate (PBT) with a UL94 V-0 flammability rating. The operating temperature range is -65°C to 105°C.
This header is suitable for a variety of applications requiring reliable board-to-cable connections, including industrial control, data communication, and consumer electronics. The shrouded design protects the pins and ensures correct orientation during mating.
26 positions.
2.54mm (0.100").
1A per contact.
250VAC.
Through hole, right angle.
-65°C to 105°C.
Tin, 30.0µin (0.76µm).
