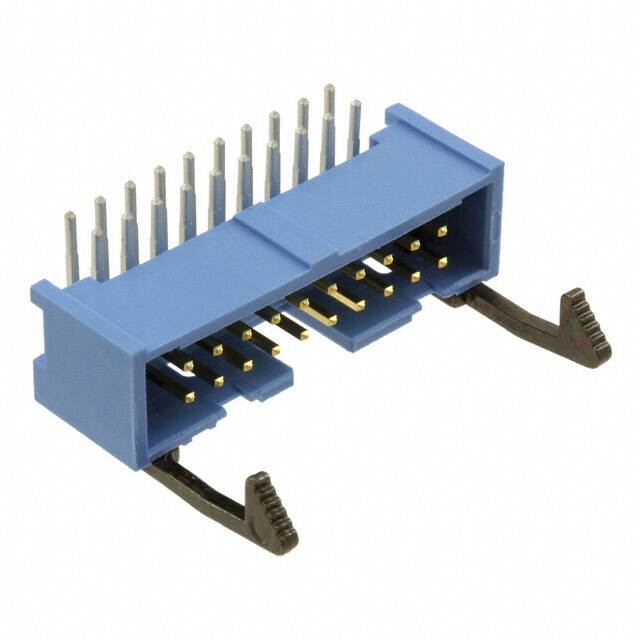

2-1761607-7 This is a 20-position, 2.54mm pitch, right-angle through-hole shrouded header with male pins from TE Connectivity. It features a latch lock/eject hook fastening and is rated for 1A per contact at 250VAC.
Mfr Part #:

2-1761607-7

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
This is a 20-position, 2.54mm pitch, right-angle through-hole shrouded header with male pins from TE Connectivity. It features a latch lock/eject hook fastening and is rated for 1A per contact at 250VAC.
✓ Total Stock: 6,896 pcs

2-1761607-7 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
6,896 pcs
On Request
6896 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

2-1761607-7 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
Termination Style
Voltage Rating
View Similar Products (0)

2-1761607-7 Description

Short technical summary and product information.

The TE Connectivity 2-1761607-7 is a rectangular connector header designed for board-to-cable/wire applications. It features 20 male pin contacts arranged in two rows with a pitch of 2.54mm (0.100") and a row spacing of 2.54mm. The header is shrouded with a 4-wall design and includes latch lock/eject hooks for secure mating. The contacts are made of phosphor bronze with a tin finish (30.0µin thickness) and have a square shape. The insulation material is blue polybutylene terephthalate (PBT) with a flammability rating of UL94 V-0. The mounting type is through-hole, right-angle, with solder termination. The header has a keying slot feature for alignment. Electrical ratings: 1A per contact and 250VAC. Operating temperature range is -65°C to 105°C. This header is suitable for various interconnect applications requiring a reliable, keyed connection.

2-1761607-7 Quick Information

Product Type: Male Pin Header
Canonical Name: TE Connectivity 2-1761607-7 20 Position 2.54mm Pitch Right Angle Shrouded Male Pin Header
Subcategory: Shrouded Header

2-1761607-7 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

2-1761607-7 Features

  • 20 position male pin header with 2.54mm pitch.
  • Right-angle through-hole mounting for compact designs.
  • Shrouded 4-wall design with latch lock/eject hooks.
  • Tin-plated phosphor bronze contacts rated for 1A.
  • Wide operating temperature range -65°C to 105°C.

2-1761607-7 Applications

  • Used for board-to-cable/wire interconnections.
  • Suitable for industrial control and automation systems.
  • Ideal for applications requiring keyed and locked connections.
  • Common in telecommunications and data networking equipment.

2-1761607-7 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this header have?

This header has 20 positions, all loaded, arranged in 2 rows.

What is the pitch of this connector?

The pitch is 2.54mm (0.100") with the same row spacing.

What is the current rating per contact?

The current rating is 1A per contact.

What is the voltage rating?

The voltage rating is 250VAC.

What is the mounting type?

The header is through-hole mounted, right-angle orientation, with solder termination.

Is the header shrouded?

Yes, it is a shrouded header with 4-wall design and latch lock/eject hooks.

What is the operating temperature range?

The operating temperature range is -65°C to 105°C.
