| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,577 pcs
|
1577 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

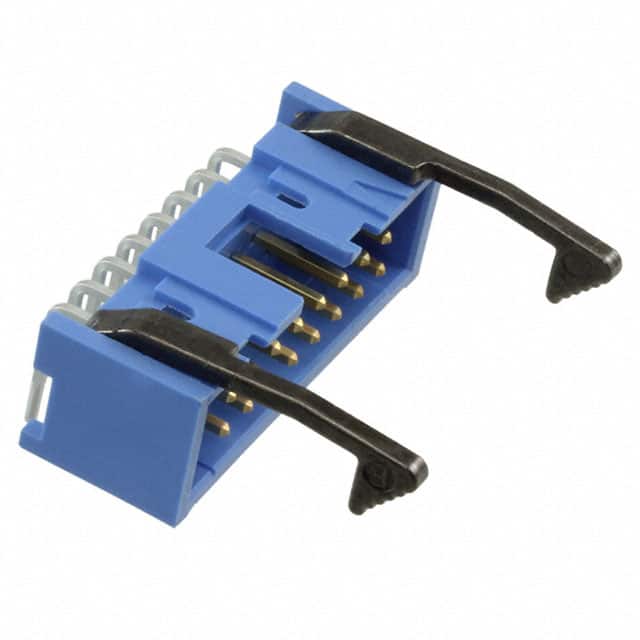

TE Connectivity 2-1761607-6 is a 16-position, 2-row, 2.54mm pitch header with male pins. It is a board-to-cable/wire connector with a shrouded 4-wall design.
Key specifications include through hole, right angle mounting with solder termination. The contact material is phosphor bronze with a tin finish of 0.762µm thickness. Fastening is provided by latch lock/eject hooks, long type.
This connector is suitable for applications requiring a secure locking mechanism and right angle orientation. The 2.54mm pitch is standard for many ribbon cable and discrete wire connections.
The connector is fully loaded with all 16 positions. The contact length is 6.02mm.
16 positions.
2.54mm.
Through hole, right angle.
Tin with thickness of 0.762µm.
Latch lock/eject hooks, long.
Yes, it has a shrouded 4-wall design.
Phosphor bronze.
