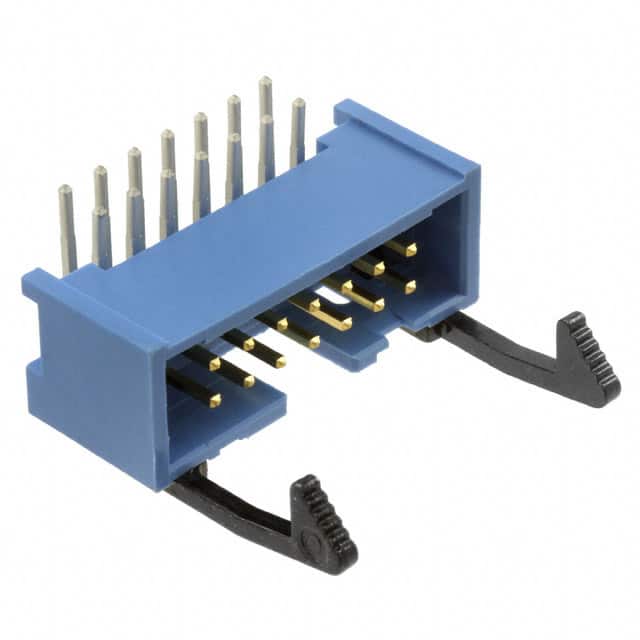

2-1761607-5 TE Connectivity 2-1761607-5 is a 14-position, 2-row, 2.54mm pitch header with male pins, right angle through hole mounting, and shrouded design.
Mfr Part #:

2-1761607-5

Available from 2 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 2-1761607-5 is a 14-position, 2-row, 2.54mm pitch header with male pins, right angle through hole mounting, and shrouded design.
✓ Total Stock: 2,561 pcs

2-1761607-5 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
2,540 pcs
On Request
2540 pcs On Request 1 On Request On Request On Request On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
21 pcs
On Request
21 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

2-1761607-5 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating
Current Rating (Amps)
Fastening Type
Features
Industrial Grade
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Medical Grade
Military Grade
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
SVHC Present
Shrouding
Style
Tape & Reel
Termination
Voltage Rating
View Similar Products (0)

2-1761607-5 Description

Short technical summary and product information.

This is a 14-position header connector from TE Connectivity, part of the rectangular connector family. It features a 2.54mm pitch and 2 rows, with all positions loaded. The connector is designed for board-to-cable/wire applications.



The header has male square pins with tin finish (30µin) on phosphor bronze contacts. It is shrouded with 4 walls and includes a latch lock/eject hook fastening system and a keying slot for polarization. The insulation is blue PBT with UL94 V-0 flammability rating.



Electrical ratings are 1A per contact and 250VAC. Operating temperature range is -65°C to 105°C. The connector is through hole, right angle mount with solder termination. It is RoHS3 compliant and REACH unaffected (unverified).

2-1761607-5 Quick Information

Product Type: Header, Male Pins
Series: LPRO
Canonical Name: TE Connectivity 2-1761607-5 Header, Male Pins, 14 Position, 2.54mm Pitch, Right Angle, Through Hole
Subcategory: Male Pins

2-1761607-5 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

2-1761607-5 Features

  • 14 positions in 2 rows at 2.54mm pitch.
  • Right angle through hole mounting style.
  • Shrouded with 4-wall design and latch lock.
  • Tin-plated phosphor bronze contacts.
  • Rated 1A per contact at 250VAC.

2-1761607-5 Applications

  • Board-to-cable wire connections in control units.
  • Industrial automation and instrumentation systems.
  • Consumer electronics requiring secure header interfaces.

2-1761607-5 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 2-1761607-5 have?

14 positions, all loaded.

What is the pitch of this header?

2.54mm (0.100").

What is the current rating?

1A per contact.

What is the voltage rating?

250VAC.

What is the mounting type?

Through hole, right angle.

What is the operating temperature range?

-65°C to 105°C.

What contact finish is used?

Tin, 30.0µin (0.76µm).
