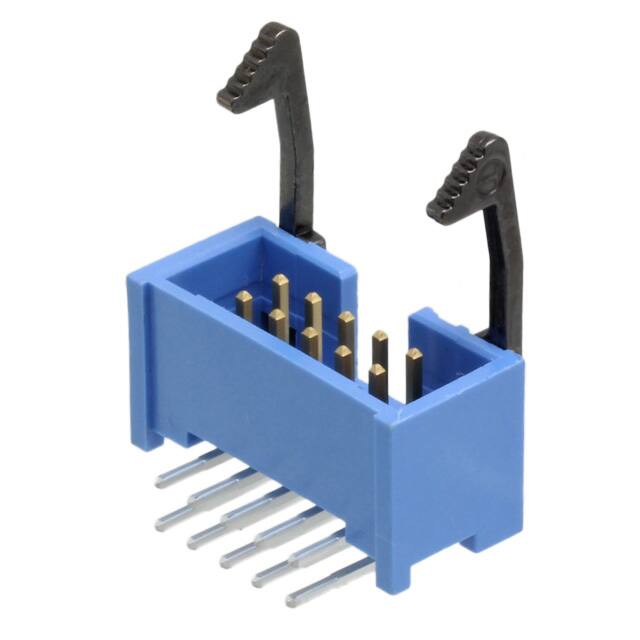

2-1761607-3 TE Connectivity 2-1761607-3 is a 10-position, 2-row right angle header with 2.54mm pitch, shrouded, and latch lock. Ideal for board-to-cable applications with 1A per contact current rating.
Mfr Part #:

2-1761607-3

Available from 3 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 2-1761607-3 is a 10-position, 2-row right angle header with 2.54mm pitch, shrouded, and latch lock. Ideal for board-to-cable applications with 1A per contact current rating.
✓ Total Stock: 6,852 pcs

2-1761607-3 Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
6,812 pcs
On Request
6812 pcs On Request 1 On Request On Request On Request On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
21 pcs
On Request
21 pcs On Request 1 On Request On Request On Request On Request On Request
Tomark Electronics Ltd ✓
Non-Authorised Inventory information
19 pcs
On Request
19 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

2-1761607-3 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating
Current Rating (Amps)
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
Voltage Rating
View Similar Products (0)

2-1761607-3 Description

Short technical summary and product information.

The TE Connectivity 2-1761607-3 is a 10-position, 2-row right angle header with a 2.54mm pitch. It features a fully shrouded 4-wall design with long latch lock/eject hooks for secure mating. The insulation is blue PBT rated UL94 V-0. Contacts are phosphor bronze with 30µin tin finish. Electrical rating is 1A per contact at 250VAC. Operating temperature range is -65°C to 105°C. Mounting is through hole, right angle with solder termination. A keying slot prevents misalignment. This header is intended for board-to-cable/wire applications.

2-1761607-3 Quick Information

Product Type: Header
Canonical Name: 10 Position Right Angle Header, 2.54mm Pitch, Shrouded, 4-Wall, with Latch Lock/Eject Hooks
Subcategory: Right Angle Header

2-1761607-3 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

2-1761607-3 Features

  • 10 positions with 2.54mm pitch.
  • Right-angle through-hole mounting.
  • Shrouded with 4-wall design.
  • Rated 1A per contact at 250VAC.
  • Includes keying slot for polarization.

2-1761607-3 Applications

  • Board-to-cable interconnect applications.
  • Space-constrained right-angle PCB layouts.

2-1761607-3 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 2-1761607-3 header have?

10 positions in 2 rows.

What is the pitch of the header?

2.54mm (0.100in).

What is the current rating per contact?

1A per contact.

What is the voltage rating?

250VAC.

What mounting type does it use?

Through hole, right angle.

What is the operating temperature range?

-65°C to 105°C.

What is the flammability rating of the insulation?

UL94 V-0.
