| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,706 pcs
|
3706 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Flammability Rating | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

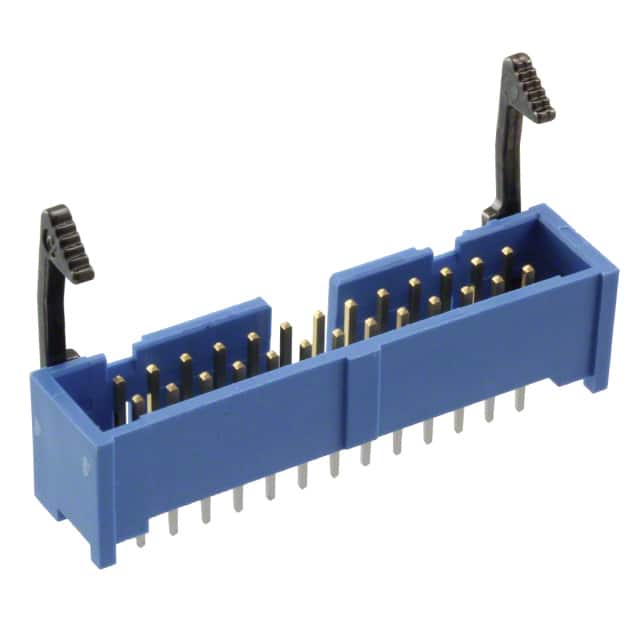

The TE Connectivity 2-1761606-9 is a 26-position shrouded header connector designed for board-to-cable/wire applications. It features a 2.54mm pitch and 2.54mm row spacing, with all 26 positions loaded in a dual-row configuration. The connector uses through hole mounting with solder termination, ensuring reliable mechanical attachment to the PCB.
The header is fully shrouded with a 4-wall design and includes long latch lock/eject hooks for secure mating and easy disconnection. A keying slot prevents misalignment during assembly. The insulation is made of blue polybutylene terephthalate (PBT) with a UL94 V-0 flammability rating, suitable for environments requiring fire resistance.
Electrical ratings are 1A per contact and 250VAC, with an operating temperature range of -65°C to 105°C. Contacts are phosphor bronze with a tin finish (30.0µin thickness) and a square pin shape. The contact length is 6.02mm (0.237"). This connector is commonly used in industrial control, automation, and other applications requiring a robust, latching interconnect.
26 positions, all loaded.
2.54mm (0.100")
1A per contact.
250VAC.
Through hole with solder termination.
-65°C to 105°C.
Phosphor bronze with tin finish, 30.0µin thickness.
