Mfr Part #:

2-1761606-7

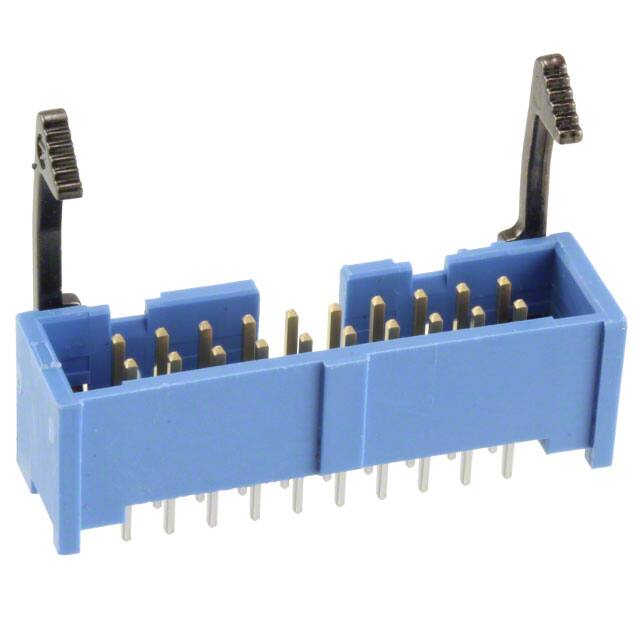

TE Connectivity 2-1761606-7 is a 20-position, 2-row, 2.54mm pitch through hole header with male pins, shrouded 4-wall design, and latch lock/eject hooks.

✓ Total Stock: 153 pcs

$ Price Range: $5.59 - $8.64

2-1761606-7 Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Speed Components Ltd ✓ Non-Authorised Inventory information	150 pcs On Request	150 pcs	On Request	1	On Request	On Request	15+	On Request	On Request
MW.FEP S.p.A. ✓ Non-Authorised Inventory information	3 pcs On Request	3 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

2-1761606-7 Description

Short technical summary and product information.

The TE Connectivity 2-1761606-7 is a 20-position, 2-row, 2.54mm pitch through hole header designed for board-to-cable/wire applications. It features a shrouded 4-wall housing with a keying slot and long latch lock/eject hooks for secure mating. The header uses phosphor bronze contacts with a tin finish (30.0µin) and is rated for 250VAC and 1A per contact. The insulation is made of blue polybutylene terephthalate (PBT) with a UL94 V-0 flammability rating. The operating temperature range is -65°C to 105°C. This component is suitable for applications requiring reliable, polarized connections in industrial, automotive, and consumer electronics.

2-1761606-7 Quick Information

Product Type: Header, Male Pins

Canonical Name: TE Connectivity 2-1761606-7 Header, Male Pins, 20 Position, 2.54mm Pitch, Through Hole

Subcategory: Male Pins

2-1761606-7 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

2-1761606-7 Estimated Pricing

Qty	Low	High
1+	$8.64	$8.64
10+	$6.31	$6.31
25+	$6.18	$6.18
256+	$5.87	$5.87
512+	$5.70	$5.70
1,008+	$5.59	$5.59

Estimated market price range - modelled values for guidance only, not live distributor offers.

2-1761606-7 Features

20 position, 2-row, 2.54mm pitch header.
Shrouded 4-wall housing with keying slot.
Latch lock/eject hooks for secure mating.
Rated 250VAC and 1A per contact.
Operating temperature -65°C to 105°C.

2-1761606-7 Applications

Board-to-cable/wire interconnect applications.
Industrial control and automation systems.
Automotive electronic module connections.
Consumer electronics requiring polarized headers.

2-1761606-7 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the pitch of this header?

The pitch is 2.54mm (0.100").

How many positions does this header have?

It has 20 positions arranged in 2 rows.

What is the current rating per contact?

The current rating is 1A per contact.

What is the voltage rating?

The voltage rating is 250VAC.

What is the mounting type?

Through hole mounting with solder termination.

What is the operating temperature range?

-65°C to 105°C.

What is the insulation material and color?

Blue polybutylene terephthalate (PBT) with UL94 V-0 flammability rating.

Category	Headers, Male Pins
Manufacturer Name	TE Connectivity
Connector Type	Header
Contact Finish	Tin
Contact Finish Thickness	30.0µin (0.76µm)
Contact Length	6.02mm (0.237")
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1A per Contact
Fastening Type	Latch Lock/Eject Hooks, Long
Features	Keying Slot
Insulation Color	Blue
Insulation Height	10.26mm (0.404")
Insulation Material	Polybutylene Terephthalate (PBT)
Lead Style	Vertical
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-65°C ~ 105°C
Pitch	2.54mm (0.100")
Row Spacing	0.100" (2.54mm)
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Tape & Reel	No
Termination	Solder
Voltage Rating	250VAC
