| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
13,414 pcs
|
13414 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

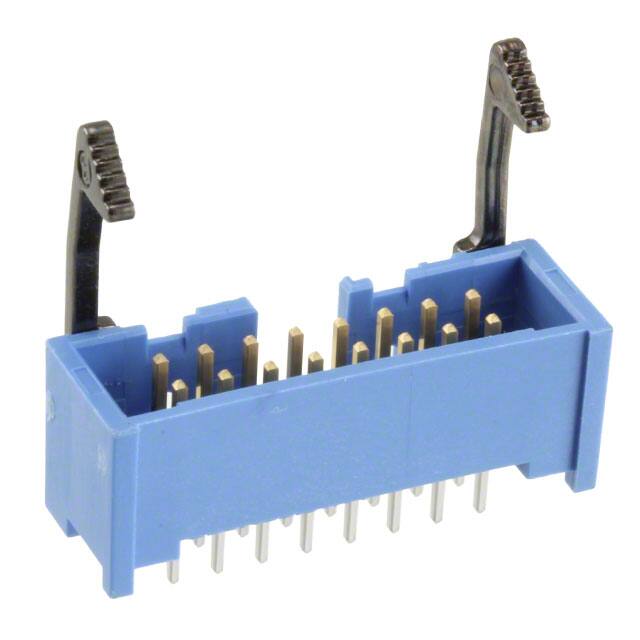

The TE Connectivity 2-1761606-6 is a 16 position, 2-row, shrouded header connector designed for board-to-cable/wire applications. It uses a 2.54mm pitch and features a shroud with latch lock/eject hooks, providing secure mating and easy disconnection. The connector has a keying slot for polarization and reliable alignment. It is rated for 1A per contact and 250VAC, with an operating temperature range of -65°C to 105°C. Contacts are made of phosphor bronze with a tin finish. The blue insulation is made from PBT rated UL94 V-0. The connector is through hole mounted and terminated by solder. This component is suitable for a wide range of industrial and consumer electronic interconnect needs requiring a compact, reliable header.
It has 16 positions arranged in 2 rows.
The pitch is 2.54mm (0.100 inches).
The current rating is 1A per contact.
The voltage rating is 250VAC.
It is through hole mounted with solder termination.
-65°C to 105°C.
Yes, it is shrouded with 4 walls and includes a keying slot.
