| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,045 pcs
|
7045 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
515 pcs
|
515 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
515 pcs
|
515 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

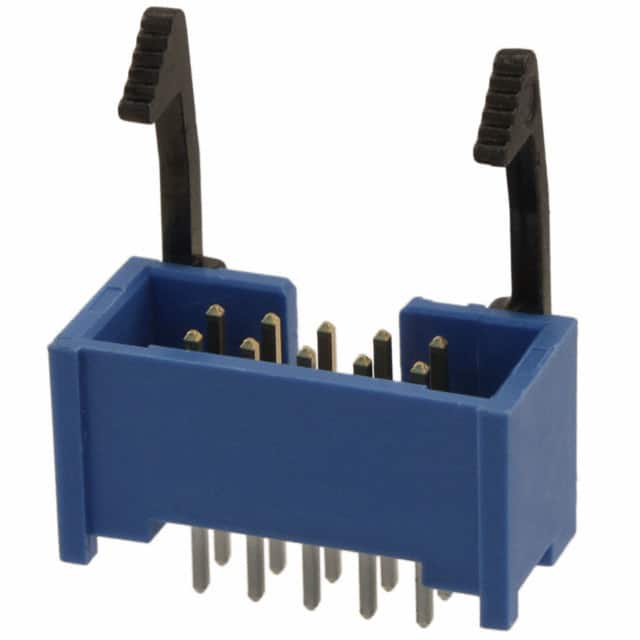

The TE Connectivity 2-1761606-3 is a 10-position, 2-row shrouded header connector designed for board-to-cable/wire applications. It features a 2.54mm pitch and 0.100" row spacing, with all positions loaded. The connector uses through hole mounting with solder termination, ensuring reliable mechanical attachment to the PCB.
The header is constructed with a blue polybutylene terephthalate (PBT) insulator rated UL94 V-0 for flammability. Contacts are made of phosphor bronze with a tin finish (30µin thickness) and square shape. The shrouded design includes a 4-wall shroud and latch lock/eject hooks for secure mating. A keying slot prevents misalignment.
Electrical ratings are 1A per contact and 250VAC, with an operating temperature range of -65°C to 105°C. This connector is suitable for wire-to-board interconnections in industrial, consumer, and automotive applications where a reliable locking mechanism is required.
10 positions in 2 rows.
2.54mm (0.100").
1A per contact.
250VAC.
Through hole with solder termination.
-65°C to 105°C.
Polybutylene Terephthalate (PBT) with UL94 V-0 rating.
