| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
884 pcs
|
884 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

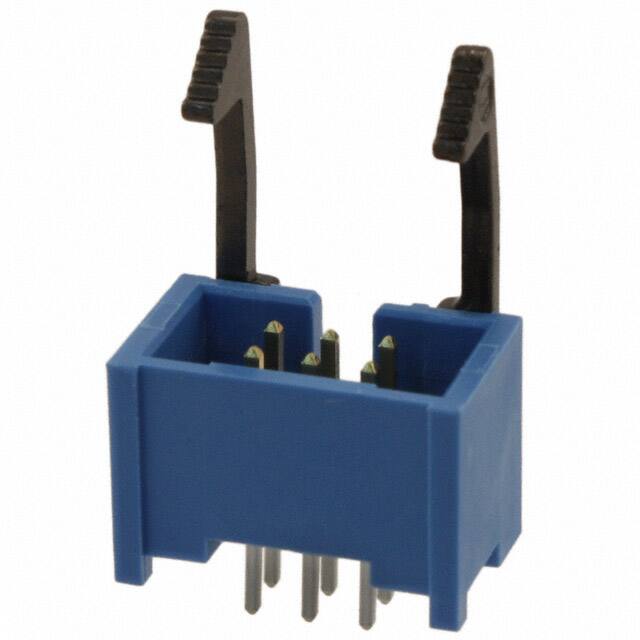

The TE Connectivity 2-1761606-1 is a 6 position, 2 row, 2.54mm pitch shrouded header designed for board to cable/wire applications. It features a 4-wall shrouded housing with latch lock/eject hooks for secure mating. The header uses through hole solder termination and has a square pin contact shape with tin plating over phosphor bronze. The insulation is blue polybutylene terephthalate (PBT) with a UL94 V-0 flammability rating. Electrical ratings are 1A per contact at 250VAC, with an operating temperature range of -65°C to 105°C. A keying slot is included for polarization.
The pitch is 2.54mm (0.100 inches).
It has 6 positions arranged in 2 rows.
The current rating is 1A per contact.
The voltage rating is 250VAC.
It uses through hole mounting with solder termination.
The operating temperature range is -65°C to 105°C.
The contact material is phosphor bronze with a tin finish of 30.0µin (0.76µm).
