| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

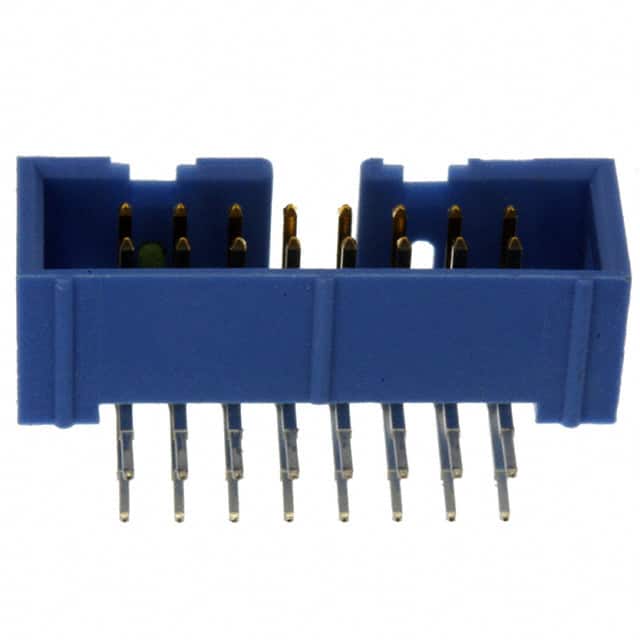

The TE Connectivity 2-1761605-6 is a 16-position, 2-row shrouded header designed for board-to-cable/wire applications. It features a 2.54mm pitch and row spacing, with all positions loaded. The connector uses male pin contacts made of phosphor bronze with a tin finish (30.0µin).
The header is shrouded on all four walls and includes a keying slot for polarization. It is mounted via through-hole right-angle configuration and terminated by soldering. The blue PBT insulator carries a UL94 V-0 flammability rating.
Electrical ratings include 1A per contact current and 250VAC voltage. The operating temperature range is -65°C to 105°C. The push-pull fastening type ensures secure mating.
16 positions, all loaded, in 2 rows.
2.54mm (0.100") pitch with 2.54mm row spacing.
1A per contact.
250VAC.
Through-hole, right-angle mounting with solder termination.
-65°C to 105°C.
Yes, it is a 4-wall shrouded header with a keying slot.
