| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,200 pcs
|
4200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

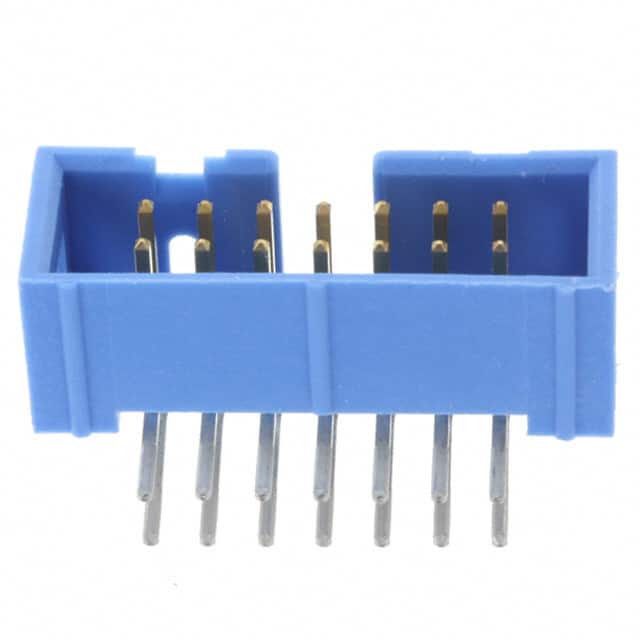

The TE Connectivity 2-1761605-5 is a 14-position, 2-row, 2.54mm pitch header designed for board-to-cable/wire applications. It features a right-angle, through-hole mounting style with solder termination. The connector is fully shrouded with a 4-wall design, providing robust mating alignment and protection. A push-pull fastening mechanism ensures secure connections, and a keying slot prevents mismating.
Electrical ratings include 1A per contact and 250VAC, with an operating temperature range of -65°C to 105°C. The insulator is made of blue polybutylene terephthalate (PBT) with a UL94 V-0 flammability rating. Contacts are phosphor bronze with a tin finish (30µin), square in shape, and all 14 positions are loaded.
This header is suitable for use in a variety of industrial, commercial, and automotive electronic assemblies where reliable wire-to-board connections are required. The right-angle orientation allows for low-profile connections parallel to the PCB.
14 positions.
2.54mm (0.100").
1A per contact.
250VAC.
Through hole, right angle.
-65°C to 105°C.
Yes, it features a shrouded 4-wall design.
