| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Flammability Rating | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

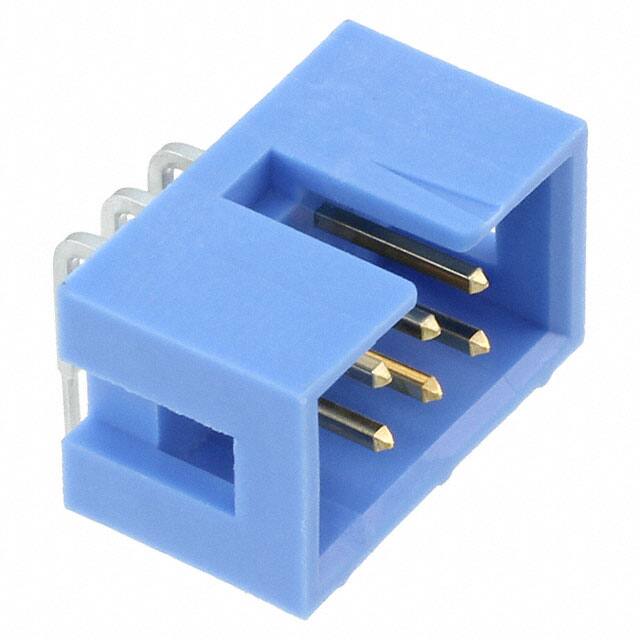

The TE Connectivity 2-1761605-1 is a 6-position rectangular connector header designed for board-to-cable/wire applications. It features a 2.54mm (0.100") pitch and 2.54mm row spacing in a 2-row configuration. The housing is made from blue polybutylene terephthalate (PBT) with a UL94 V-0 flammability rating.
This header uses male square pins with a 30.0µin tin finish over phosphor bronze contact material. The contact length is 6.10mm. It features a 4-wall shrouded design with a push-pull fastening type and a keying slot for polarization. The operating temperature ranges from -65°C to 105°C.
Mounting type is through hole with a right angle orientation, terminated by solder. It is rated for 250VAC and 1A per contact.
It has 6 positions arranged in 2 rows with a 2.54mm pitch.
Rated at 250VAC and 1A per contact.
Through hole, right angle with solder termination.
-65°C to 105°C.
Phosphor bronze contacts with a 30.0µin tin finish.
Blue PBT (Polybutylene Terephthalate) with UL94 V-0 rating.
