| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,100 pcs
|
5100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

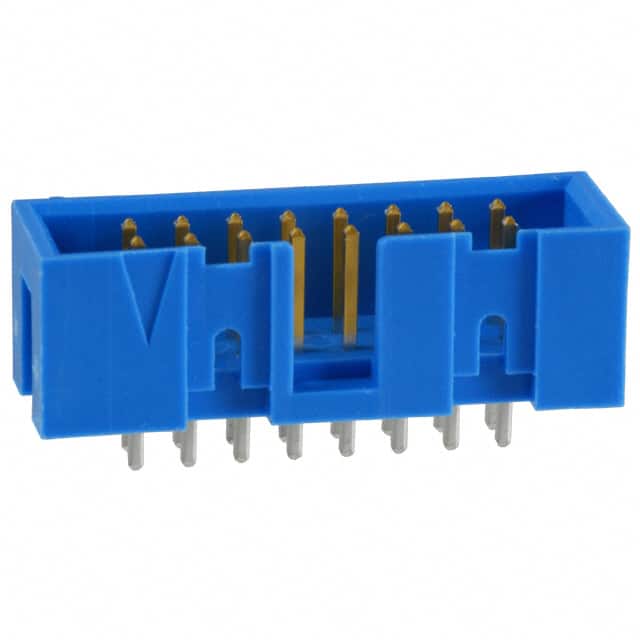

The TE Connectivity 2-1761603-6 is a 16-position, 2-row shrouded header from the Dynamic D-3000 series, designed for board-to-cable/wire connections. It features a 2.54mm pitch and 2.54mm row spacing, with a through-hole mounting style and solder termination. The header has a full 4-wall shroud for pin protection and includes a keying slot for polarization.
Male pin contacts are made of phosphor bronze with a tin finish, rated at 1A per contact and 250VAC. The insulation is blue polybutylene terephthalate (PBT) with a UL94 V-0 flammability rating, supporting an operating temperature range of -65°C to 105°C. The contact length is 6.10mm and the insulation height is 8.89mm.
This connector is suitable for wire-to-board applications requiring a reliable, polarized connection. The push-pull fastening type ensures easy mating and unmating. The component is RoHS compliant and MSL 1.
The pitch is 2.54mm (0.100").
It has 16 positions in 2 rows, all positions loaded.
The current rating is 1A per contact.
The voltage rating is 250VAC.
Through-hole mounting with solder termination.
