| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,562 pcs
|
1562 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
150 pcs
|
150 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request | |
|
49 pcs
|
49 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Length - Mating | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

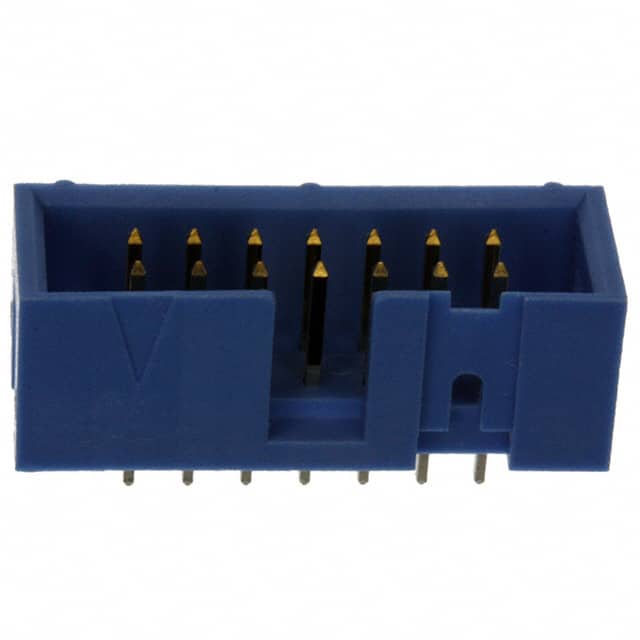

The TE Connectivity 2-1761603-5 is a 14-position, 2-row male pin header connector designed for board-to-cable/wire applications. It features a shrouded 4-wall design for secure mating and push-pull fastening. The connector uses a standard 2.54mm pitch and is mounted via through-hole soldering.
The insulator is molded from blue Polybutylene Terephthalate (PBT) with a UL94 V-0 flammability rating, ensuring reliable performance in demanding environments. Contacts are made of phosphor bronze with a tin plating of 0.76µm, providing good conductivity and corrosion resistance.
Electrical ratings are 1A per contact and 250VAC, with an operating temperature range of -65°C to 105°C. The header includes a keying slot for polarization, preventing misalignment during connection. This connector is suitable for a wide range of industrial, consumer, and communication equipment.
It has 14 positions arranged in 2 rows with 2.54mm pitch.
The pitch is 2.54mm (0.100") with 2.54mm row spacing.
It is rated 1A per contact and 250VAC.
It is a through-hole mounting with solder termination.
The operating temperature range is -65°C to 105°C.
