| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,145 pcs
|
2145 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

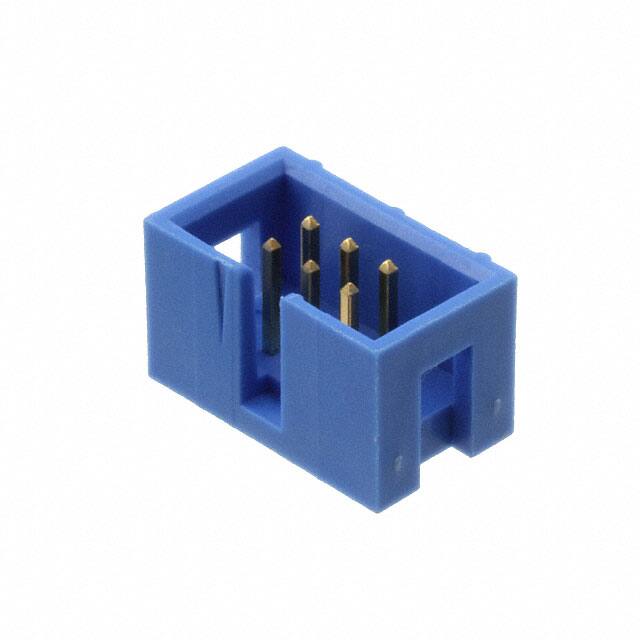

The TE Connectivity 2-1761603-1 is a 6-position, 2-row shrouded header connector designed for board-to-cable/wire applications. It features a 2.54mm (0.100") pitch and row spacing, with through-hole mounting and solder termination. The header is fully shrouded with a 4-wall design and includes a keying slot for polarization.
The contacts are made of phosphor bronze with a tin finish of 30.0µin (0.76µm), providing reliable electrical performance. The insulator is constructed from blue polybutylene terephthalate (PBT) with a UL94 V-0 flammability rating. The header is rated for 1A per contact and 250VAC, with an operating temperature range of -65°C to 105°C.
This connector is suitable for a variety of industrial and commercial applications requiring a secure, polarized connection. The push-pull fastening type ensures easy mating and unmating. The square contact shape and 6.10mm contact length provide robust mechanical engagement.
6 positions in 2 rows.
2.54mm (0.100")
1A per contact.
250VAC.
Through hole with solder termination.
-65°C to 105°C.
Tin with 30µin (0.76µm) thickness.
