| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
14 pcs
|
14 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Features | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Wire Gauge | |
| Wire Type |

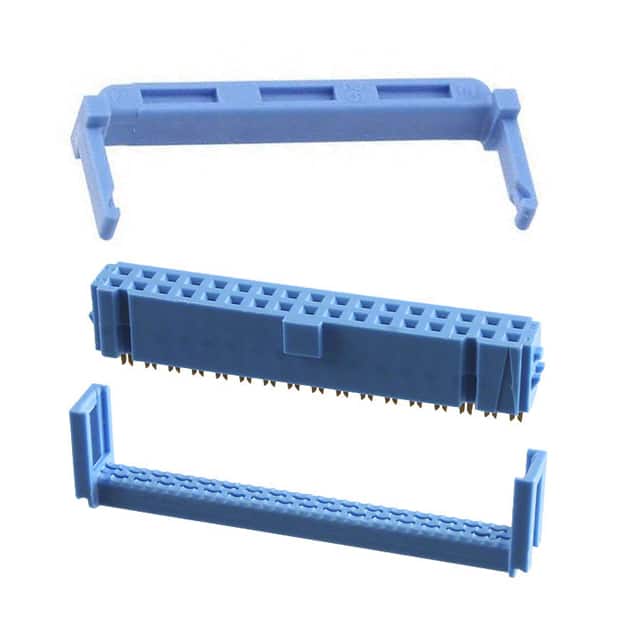

The TE Connectivity 2-1658527-8 is a 34-position IDC (Insulation Displacement Connector) receptacle designed for termination to 26-28 AWG stranded or solid ribbon cable. It features a two-row configuration with a standard 2.54mm (0.100 inch) pitch and row spacing, making it compatible with common ribbon cable layouts.
The connector employs female socket contacts with a 30 microinch gold finish, providing reliable signal integrity and corrosion resistance. Mounting type is free hanging (in-line), suitable for cable-to-board or cable-to-cable applications. The receptacle includes feed through, polarizing key, and strain relief features to ensure secure mating and cable management.
This connector is commonly used in internal wiring harnesses and interconnect systems where compact, reliable mass termination is required. The blue housing color aids in visual identification.
34 positions in a 2-row configuration.
2.54mm (0.100 inch).
Designed for 26-28 AWG stranded or solid ribbon cable, terminated via IDC.
Gold, 30.0µin (0.76µm).
Free hanging (in-line) — it is not board mount.
