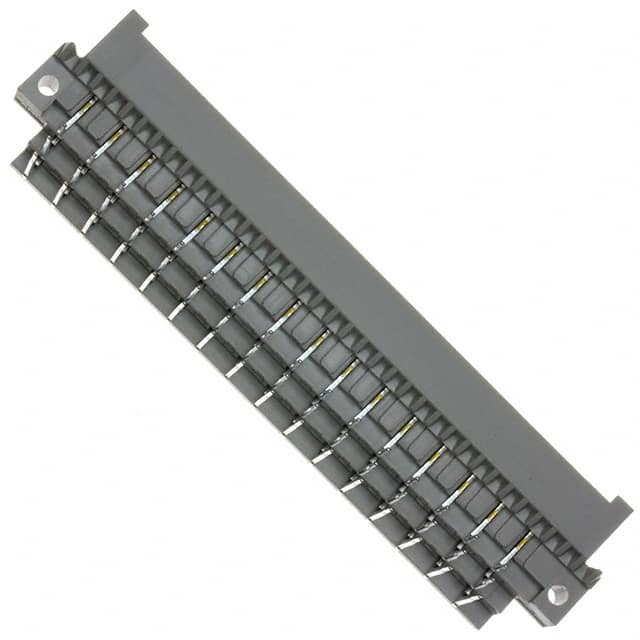

2-164045-4 The 2-164045-4 is a TE Connectivity DIN 41612 plug connector with 96 positions (48 loaded), 3 rows, 5.08mm pitch. It features a right angle through hole mounting and gold contact finish.
Mfr Part #:

2-164045-4

Available from 3 distributors
Mfr Name: TE Connectivity
TE Connectivity
The 2-164045-4 is a TE Connectivity DIN 41612 plug connector with 96 positions (48 loaded), 3 rows, 5.08mm pitch. It features a right angle through hole mounting and gold contact finish.
✓ Total Stock: 939 pcs

2-164045-4 Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
912 pcs
On Request
912 pcs On Request 1 On Request On Request On Request On Request On Request
Speed Components Ltd ✓
Non-Authorised Inventory information
20 pcs
On Request
20 pcs On Request 1 On Request On Request 1999 On Request On Request
Seba Components ✓
Non-Authorised Inventory information
7 pcs
On Request
7 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

2-164045-4 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Lead Spacing
Lead Style
Level, Class
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Pitch
Style
Termination
View Similar Products (0)

2-164045-4 Description

Short technical summary and product information.

The 2-164045-4 is a DIN 41612 connector from TE Connectivity, designed as a plug with male pins. It provides 96 positions with 48 loaded, arranged in 3 rows at a pitch of 5.08mm (0.200 inches). The connector utilizes a through hole, right angle mounting style with solder termination, making it suitable for standard backplane PCB layouts. The contact finish is gold with a thickness of 31.5µin (0.80µm), ensuring reliable conductivity and corrosion resistance. This component is rated Class 2, indicating a standard industrial performance level. It is listed as RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited), though these compliance statuses are unverified. The connector is ideal for use in backplane interconnection systems requiring a robust, right angle interface.

2-164045-4 Quick Information

Product Type: DIN 41612 Connector
Canonical Name: TE Connectivity DIN 41612 Connector, Plug, Male Pins, 96 Positions (48 Loaded), 3 Rows, 5.08mm Pitch, Through Hole, Right Angle, Gold Contact Finish
Subcategory: Backplane Connectors

2-164045-4 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

2-164045-4 Features

  • 96-position DIN 41612 plug connector with 48 loaded positions.
  • 3 rows at 5.08mm (0.200") pitch.
  • Right angle through hole mounting for PCB.
  • Gold contact finish of 31.5µin thickness.
  • Class 2 rating for industrial applications.

2-164045-4 Applications

  • Used in backplane interconnection systems.
  • Ideal for industrial control and telecom equipment.
  • Supports dense PCB layouts with right angle orientation.
  • Suitable for standard DIN 41612 rack systems.

2-164045-4 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

The connector has 96 positions total, with 48 positions loaded.

What is the pitch?

The pitch is 5.08mm (0.200 inches).

What is the mounting type?

The mounting type is through hole, right angle.

What is the contact finish?

The contact finish is gold with a thickness of 31.5µin (0.80µm).

How many rows does the connector have?

The connector has 3 rows.

Is the connector RoHS compliant?

It is listed as RoHS3 compliant, but this status is unverified.

What is the termination method?

The termination method is solder.
