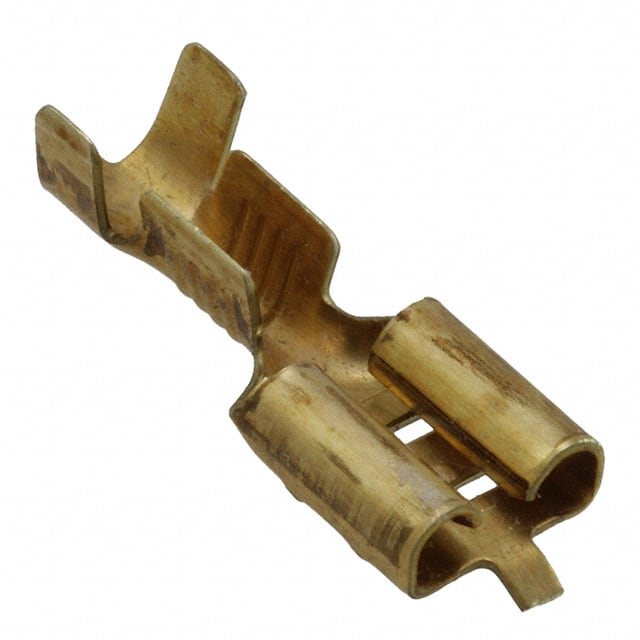

2-160256-1 TE Connectivity 2-160256-1 is a non-insulated female quick disconnect terminal with a 0.250" tab width, accepting 13-17 AWG wire. It features a brass contact and crimp termination for free hanging applications.
Mfr Part #:

2-160256-1

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 2-160256-1 is a non-insulated female quick disconnect terminal with a 0.250" tab width, accepting 13-17 AWG wire. It features a brass contact and crimp termination for free hanging applications.
✓ Total Stock: 7,000 pcs

2-160256-1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
7,000 pcs
On Request
7000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

2-160256-1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Contact Material
Gender
Insulation
Length
Mounting Type
Tab Length
Tab Thickness
Tab Width
Tape & Reel
Terminal Type
Termination
Wire Gauge
View Similar Products (0)

2-160256-1 Description

Short technical summary and product information.

The TE Connectivity 2-160256-1 is a standard female quick disconnect terminal designed for 0.250" (6.35mm) tab width. It accepts wire gauges from 13 to 17 AWG and features a non-insulated brass contact. The terminal has a tab thickness of 0.032" (0.81mm) and tab length of 0.303" (7.70mm), with an overall length of 19.00mm. Termination is via crimp, and the mounting type is free hanging (in-line). This terminal is RoHS3 compliant and REACH unaffected. It is suitable for applications requiring reliable quick connect/disconnect connections in power distribution, automotive, and industrial equipment. The brass material provides good conductivity and corrosion resistance. The part is available in tape and reel packaging from distributors like DigiKey (part numbers A107184TR-ND and A107184CT-ND).

2-160256-1 Quick Information

Product Type: Quick Disconnect Terminal
Canonical Name: TE Connectivity 2-160256-1 Quick Disconnect Terminal, Female, 0.250" Tab, Non-Insulated, Crimp
Subcategory: Non-Insulated Quick Disconnect Terminal

2-160256-1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

2-160256-1 Features

  • 0.250" (6.35mm) tab width for standard quick disconnect.
  • Accepts 13-17 AWG wire gauge range.
  • Non-insulated brass contact for conductivity.
  • Crimp termination for reliable connections.
  • Free hanging mounting for in-line use.

2-160256-1 Applications

  • Used in automotive wiring harnesses.
  • Ideal for power distribution panels.
  • Suitable for industrial control equipment.
  • Common in appliance connections.

2-160256-1 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the tab width of the 2-160256-1?

The tab width is 0.250" (6.35mm).

What wire gauge does this terminal accept?

It accepts 13-17 AWG wire.

Is the terminal insulated?

No, it is non-insulated.

What is the contact material?

The contact material is brass.

What is the mounting type?

Free hanging (in-line).

What termination method is used?

Crimp termination.

Is the 2-160256-1 RoHS compliant?

Yes, it is RoHS3 compliant (unverified).
