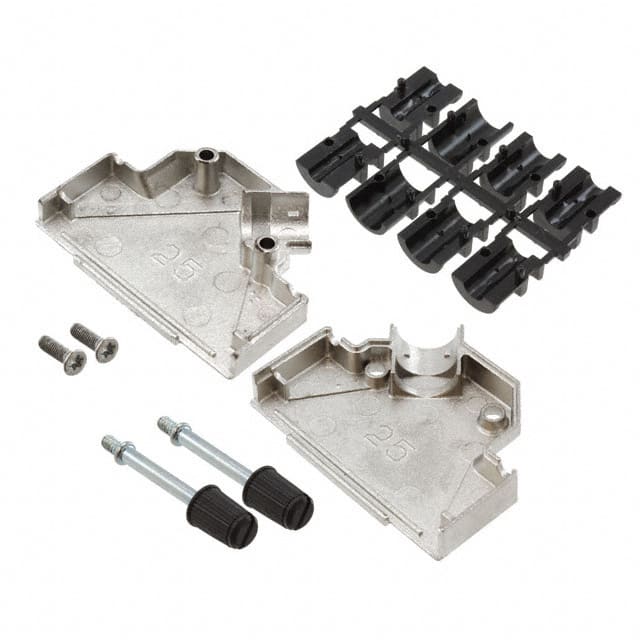

2-1478763-5 This is a 25-position, 45° cable exit, shielded D-Sub backshell from TE Connectivity. It features a metal zinc construction with nickel plating and includes mating screws 4-40.
Mfr Part #:

2-1478763-5

Available from 2 distributors
Mfr Name: TE Connectivity
TE Connectivity
This is a 25-position, 45° cable exit, shielded D-Sub backshell from TE Connectivity. It features a metal zinc construction with nickel plating and includes mating screws 4-40.
✓ Total Stock: 308 pcs

2-1478763-5 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
200 pcs
On Request
200 pcs On Request 1 On Request On Request On Request On Request On Request
Husky International Electronic ✓
Non-Authorised Inventory information
108 pcs
On Request
108 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

2-1478763-5 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Accessory Type
Cable Exit
Cable Type
Color
Features
Hardware
Material
Mounting Type
Number of Positions
Plating
Shielding
Tape & Reel
View Similar Products (0)

2-1478763-5 Description

Short technical summary and product information.

The TE Connectivity 2-1478763-5 is a two-piece backshell designed for D-Sub connectors, accommodating 25 positions. It features a 45° cable exit angle, allowing for flexible routing of round cables. The backshell is shielded to provide electromagnetic interference (EMI) protection, and is constructed from metal zinc with a nickel plating for durability and corrosion resistance. Its silver color offers a neutral appearance. Included hardware comprises assembly hardware, grommets, and strain relief, along with mating screws 4-40 for secure attachment. The mounting type is cable mount, suitable for field installation or cable assembly applications.

2-1478763-5 Quick Information

Product Type: D-Sub Backshell
Canonical Name: TE Connectivity 2-1478763-5 D-Sub Backshell, 25 Position, 45° Cable Exit, Shielded
Subcategory: D-Sub Connector Accessories

2-1478763-5 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

2-1478763-5 Features

  • 25-position D-Sub backshell for cable termination.
  • 45° cable exit angle for routing flexibility.
  • Shielded construction for EMI protection.
  • Metal zinc body with nickel plating.
  • Includes mating screws 4-40 and strain relief.

2-1478763-5 Applications

  • Ideal for protecting D-Sub connector wire terminations.
  • Used in industrial control and communication equipment.
  • Provides strain relief and cable management.
  • Suitable for data and signal cabling applications.
  • Enhances EMI shielding in sensitive electronics.

2-1478763-5 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

25 positions.

What is the mounting type?

Cable mount.

What is the cable exit angle?

45 degrees.

Is this backshell shielded?

Yes, it is shielded.

What material is the backshell made of?

Metal, zinc.

What is the plating?

Nickel.

What hardware is included with the backshell?

Assembly hardware, grommets, and strain relief.
