| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
139 pcs
|
139 pcs | On Request | 1 | On Request | On Request | 9948 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Card Thickness | |
| Card Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Features | |
| Gender | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Read Out | |
| Termination |

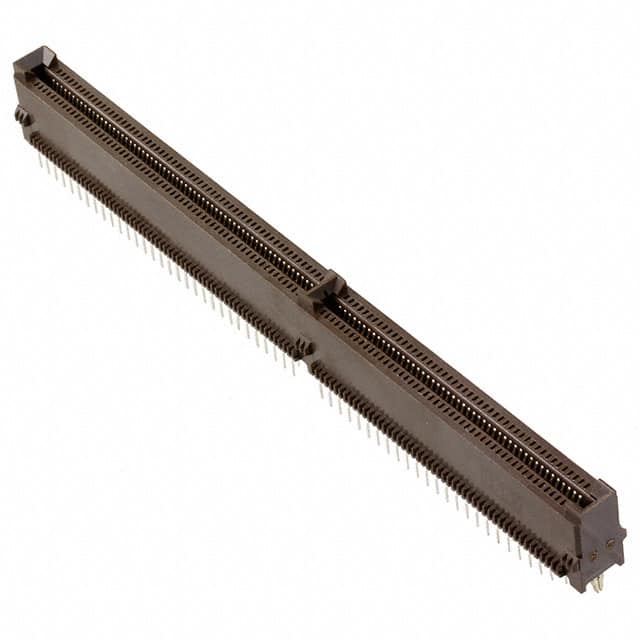

The TE Connectivity 2-145090-6 is a dual readout edgeboard connector designed for reliable card edge interfacing. It features 110 positions arranged in 2 rows with a 1.27mm (0.050") pitch. The connector accepts a non-specified dual edge card with a thickness range of 1.37mm to 1.78mm (0.054" to 0.070").
Contacts are made of phosphor bronze with a gold finish of 30.0µin (0.76µm) thickness, ensuring excellent conductivity and corrosion resistance. The connector uses through hole mounting with staggered solder termination and includes a board lock feature for secure attachment to the PCB.
Operating temperature range is -55°C to 85°C, making it suitable for a wide variety of industrial and commercial applications. The dual readout design allows simultaneous connection to both sides of the mating card edge.
The connector has 110 positions.
The pitch is 1.27mm (0.050").
It is a through hole mounting connector.
The operating temperature range is -55°C to 85°C.
The contacts have a gold finish with 30.0µin (0.76µm) thickness.
