| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
90 pcs
|
90 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

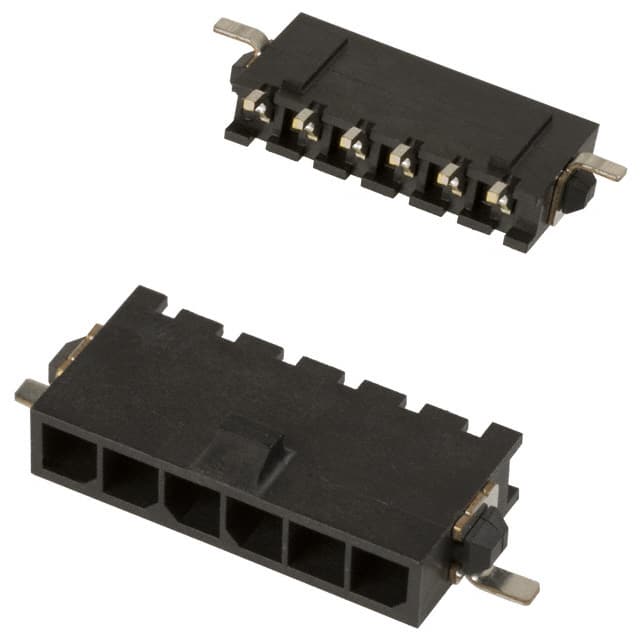

The TE Connectivity 2-1445100-6 is a 6-position, single row, 3.00mm pitch shrouded header designed for board-to-cable/wire interconnects. It features male square pins made of brass with a tin finish and 30.0 microinch contact finish thickness, ensuring reliable electrical performance. The header is housed in a black polyamide (nylon) insulator with a UL94 V-0 flammability rating, suitable for applications requiring fire safety.
This component is configured for surface mount, right angle mounting, using solder termination. The shrouded 4-wall design includes a locking ramp fastening type for secure mating, and the solder retention feature provides additional mechanical stability during assembly and operation. The voltage rating is 250V, and the operating temperature range spans from -40°C to 105°C, making it suitable for a variety of industrial and consumer electronic environments.
Designed for use in board-to-cable/wire connections, this header is ideal for applications requiring secure, space-saving right-angle interconnects. The 3.00mm pitch and single-row configuration allow for compact wiring layouts. The current rating varies by wire gauge, so appropriate wire selection is necessary for specific current loads.
The pitch is 3.00mm.
The voltage rating is 250V.
The operating temperature range is -40°C to 105°C.
It is surface mount, right angle.
The contacts are finished with tin, 30.0 microinches (0.76 microns).
