| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,389 pcs
|
1389 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

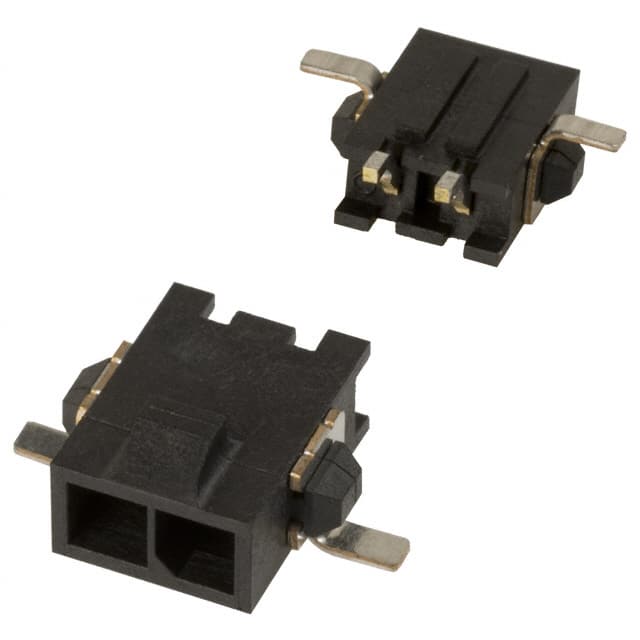

The TE Connectivity 2-1445100-2 is a 2-position shrouded header connector designed for board-to-cable/wire applications. It features a 3.00mm pitch with a single row of male square pins. The connector uses surface mount right angle termination and features solder retention for reliable board attachment.
This header has a 4-wall shrouded design with a locking ramp fastening type, providing secure mating. The insulator is made from black polyamide (PA) nylon with a UL94 V-0 flammability rating. Operating temperature range is -40°C to 105°C, with a voltage rating of 250V. Current rating varies by wire gauge.
The contacts are brass with a tin finish of 30.0µin (0.76µm). The connector is suitable for automated assembly and is compatible with standard pick-and-place equipment.
The pitch is 3.00mm (0.118 inches).
It has 2 positions in a single row, all positions loaded.
Surface mount, right angle. Termination is solder.
250V.
-40°C to 105°C.
Yes, it has a shrouded 4-wall design with a locking ramp fastening type.
