| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,010 pcs
|
3010 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
230 pcs
|
230 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

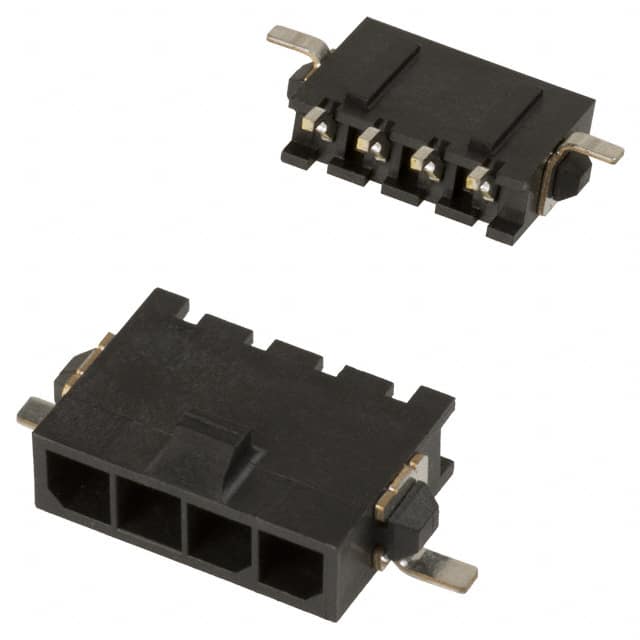

The TE Connectivity 2-1445057-4 is a 4-position header connector with male pins arranged in a single row at 3.00mm pitch. It features a shrouded 4-wall design that provides mating alignment and polarization, with a locking ramp for secure retention. The header is configured for surface mount right-angle installation, making it suitable for low-profile board-to-cable/wire connections.
The contacts are made of brass with a tin finish, ensuring reliable conductivity and corrosion resistance. The contact finish thickness is 100.0µin (2.54µm). The insulation is black polyamide (nylon) rated UL94 V-0 for flammability. The operating temperature range is -40°C to 105°C, and the voltage rating is 250V. The current rating varies by wire gauge.
This connector includes a solder retention feature to aid in assembly. It is designed for board-to-cable/wire interconnection applications.
It has 4 positions arranged in a single row.
The pitch is 3.00mm (0.118 inches).
The current rating varies by the wire gauge used; a specific value is not provided in the available specifications.
The voltage rating is 250V.
It is surface mount, right angle.
The operating temperature range is -40°C to 105°C.
The insulation material is rated UL94 V-0.
