| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,128 pcs
|
2128 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

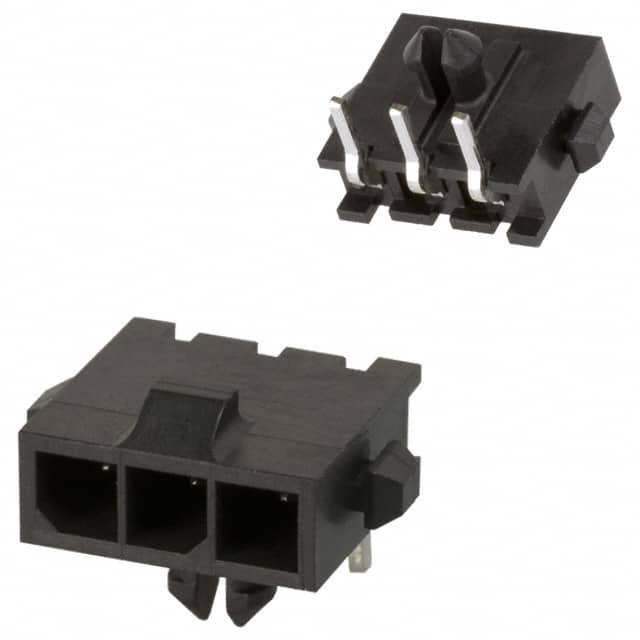

The TE Connectivity 2-1445055-3 is a 3-position, single-row header with a 3.00mm pitch. It features a shrouded 4-wall design with a locking ramp for secure mating with compatible cable connectors. The header has male pin contacts made of brass with a tin finish (100µin thickness) and is rated for 250V. The current rating varies by wire gauge. The insulation is black nylon (PA) with a UL94 V-0 flammability rating.
The header is designed for board-to-cable/wire applications and supports through-hole, right-angle mounting with solder termination. It includes a board lock feature for enhanced PCB retention. The operating temperature range is -40°C to 105°C. The contact length is 3.50mm, and the insulation height is 3.85mm. This connector is suitable for a variety of power and signal interconnect needs where a compact, right-angle interface is required.
3 positions in a single row.
3.00mm (0.118 inches).
Current rating varies by wire gauge; no fixed amp rating provided.
250V.
Through hole, right angle.
-40°C to 105°C.
Tin, 100µin (2.54µm) thickness.
