| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,400 pcs
|
1400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

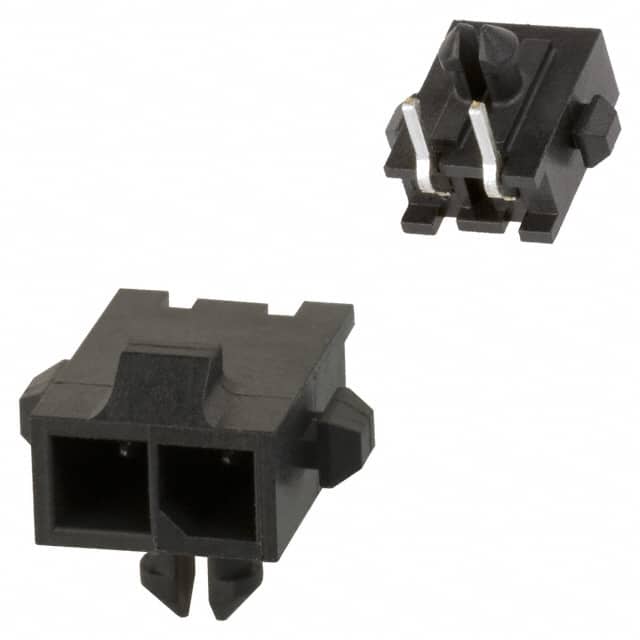

The 2-1445055-2 is a rectangular connector header from TE Connectivity, designed for board-to-cable/wire applications. It features 2 positions in a single row with a 3.00mm pitch, making it suitable for compact PCB layouts. The connector uses male pin contacts made of brass with a tin finish, offering a contact finish thickness of 100µin (2.54µm).
The header is shrouded with a 4-wall design for improved mating alignment and includes a locking ramp for secure retention. A board lock feature aids in mechanical stability during soldering and operation. The insulator is black polyamide (PA) nylon with a UL94 V-0 flammability rating, ensuring safety in demanding environments.
Electrically, the header is rated for 250V and has an operating temperature range of -40°C to 105°C. Current rating varies based on the connected wire gauge, so it is important to select appropriate wiring for the intended current. The through hole right angle mounting allows for efficient use of PCB space, particularly in designs where connectors are placed at the edge or perpendicular to the board.
The header has 2 positions in a single row.
The pitch is 3.00mm (0.118 inches).
Through hole, right angle mounting with solder termination.
The voltage rating is 250V.
Operating temperature is -40°C to 105°C.
Yes, it features a locking ramp for secure mating.
The insulator material is UL94 V-0 rated.
