| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,260 pcs
|
1260 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
12 pcs
|
12 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Packaging Type | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

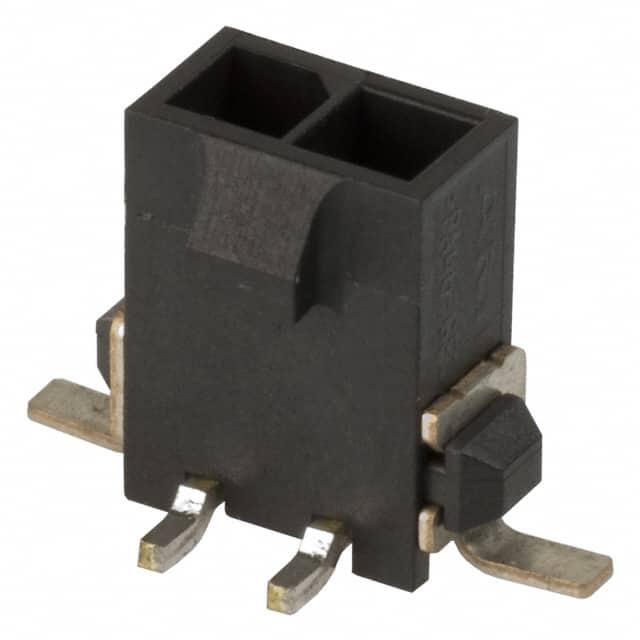

The TE Connectivity 2-1445053-2 is a 2-position, single-row, shrouded header (male pin) connector with a 3.00mm pitch. It features a surface mount termination style with solder retention and pick-and-place capabilities, making it suitable for automated assembly processes.
The header is fully shrouded with four walls and includes a locking ramp fastening type for secure mating with cable/wire connectors. The contacts are made of brass with a 100µin tin finish, and the housing is black polyamide (PA) nylon with a UL94 V-0 flammability rating.
This connector is rated for 250V and has an operating temperature range of -40°C to 105°C. It is designed for board-to-cable/wire applications and is available in tape and reel packaging.
The pitch is 3.00mm (0.118 inches).
It has 2 positions in a single row.
The voltage rating is 250V.
It uses surface mount (SMD) with solder termination.
The operating temperature range is -40°C to 105°C.
Yes, it is a fully shrouded header with 4 walls.
The contacts have a tin finish with 100µin thickness.
