| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,260 pcs
|
1260 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

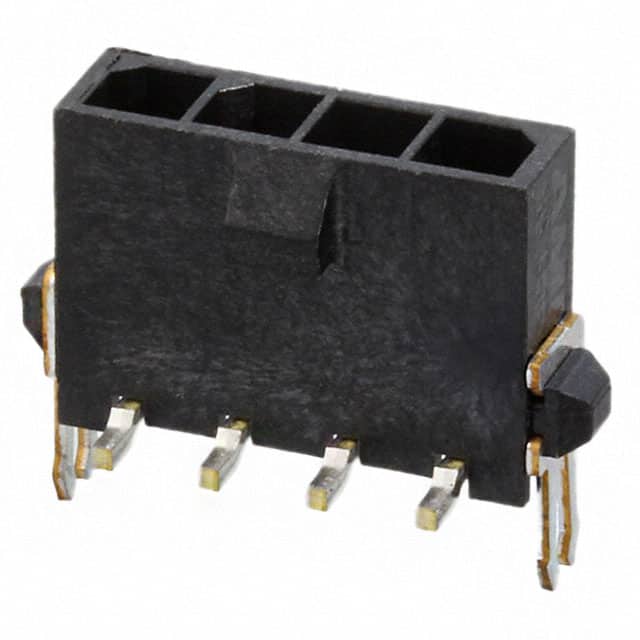

The TE Connectivity 2-1445052-4 is a 4-position, single-row header with a pitch of 3.00mm. It is designed for board-to-cable/wire applications and features a shrouded 4-wall design for improved mating alignment and protection. The header uses male pin contacts made of brass with a tin finish, and the housing is molded from black polyamide (PA) nylon with a UL94 V-0 flammability rating.
The connector is surface mount (SMD) terminated with solder, and includes a locking ramp fastening mechanism for secure mating. Additional features include a board lock and pick-and-place capability, facilitating automated assembly. The insulation height is 9.25mm.
Electrically, the header is rated for 250V and has an operating temperature range of -40°C to 105°C. Current rating varies depending on the wire gauge used. The contact finish thickness is 100.0µin (2.54µm) of tin. The product is RoHS3 compliant, REACH unaffected, and has an MSL of 1 Unlimited (unlimited floor life).
The header has 4 positions in a single row.
The pitch is 3.00mm.
The voltage rating is 250V.
The current rating varies depending on the wire gauge used; no fixed value is specified.
It is surface mount (SMD) with solder termination.
The operating temperature range is -40°C to 105°C.
The contacts are finished with tin, thickness 100.0µin (2.54µm).
