| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
266 pcs
|
266 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

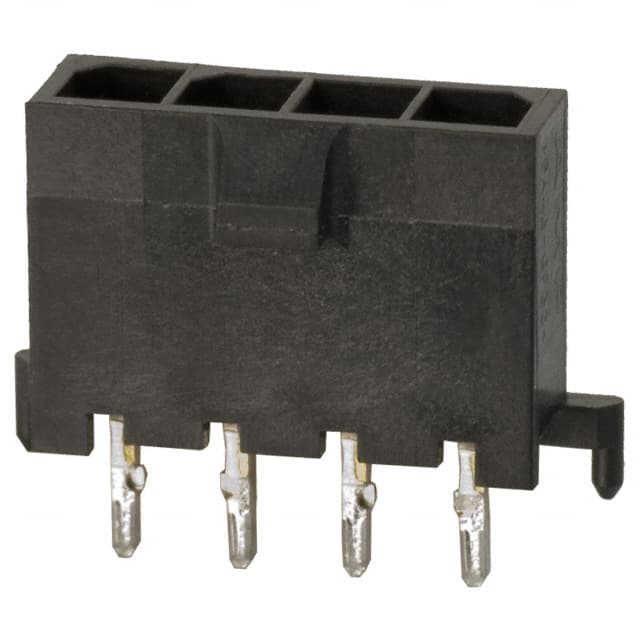

The TE Connectivity 2-1445050-4 is a 4 position, single row, shrouded header designed for board-to-cable/wire applications. It uses male square pins with a pitch of 3.00mm and supports both press-fit and solder termination methods through a through hole mounting style. The connector is rated for 250V and its current rating varies by wire gauge.\n\nThis header employs a 4-wall shrouded design with a locking ramp fastening type for secure mating. It includes a board guide feature to aid in alignment during assembly. The insulator is made of black polyamide (nylon) with a flammability rating of UL94 V-0. The contacts are constructed from brass with a tin finish of 100.0µin (2.54µm) thickness.\n\nWith an operating temperature range of -40°C to 105°C, this connector is suitable for various environments. The contact length is 3.18mm and the insulation height is 9.25mm.
The pitch is 3.00mm.
The voltage rating is 250V.
The operating temperature range is -40°C to 105°C.
This header has 4 positions in a single row.
The mounting type is through hole with press-fit and solder termination.
Yes, it is a 4-wall shrouded header with a locking ramp fastening type.
