| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,040 pcs
|
3040 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Barrier Type | |
| Bottom Termination | |
| Color | |
| Current Rating | |
| Current Rating (Amps) | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Circuits | |
| Number of Rows | |
| Number of Wire Entries | |
| Pitch | |
| Terminal Block Type | |
| Termination Style | |
| Top Termination | |
| Voltage Rating | |
| Wire Gauge |

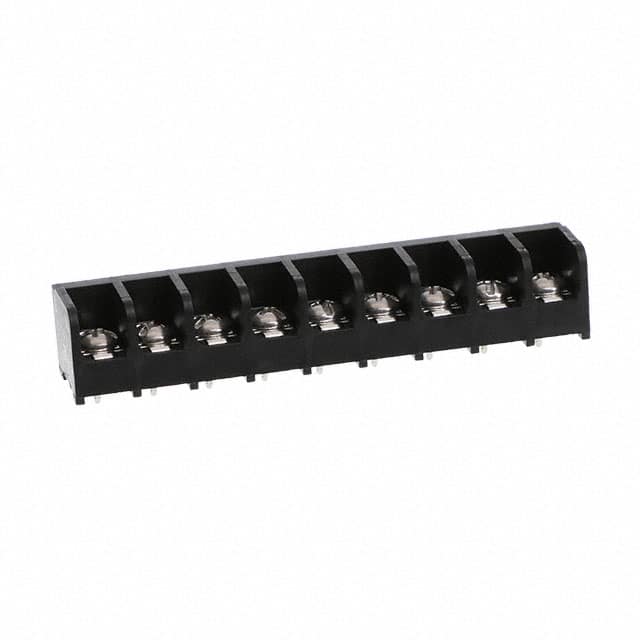

The TE Connectivity 2-1437653-8 is a barrier block terminal strip with 9 circuits and a pitch of 0.375" (9.53mm). It is rated for 25A continuous current and 300V maximum voltage. The wire gauge range is 12 to 22 AWG, making it suitable for medium-power wiring applications.
This barrier block features a 3-wall (tri) barrier design for enhanced isolation between circuits. The top termination uses screws, while the bottom termination is via PC pins for through-hole mounting to a printed circuit board. The board has a single row of 9 wire entries.
All components are housed in a black insulator. The mounting type is through hole, and the block is RoHS3 compliant and REACH unaffected (both unverified). Moisture sensitivity level is MSL 1 (unlimited).
Typical applications include power distribution, control panels, industrial equipment, and other electrical systems requiring reliable, high-current connections in a compact form factor.
9 circuits.
0.375" (9.53mm).
25A.
300V.
Through hole, with PC pin bottom termination.
12 to 22 AWG.
