| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
33 pcs
|
33 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Circuit | |
| Current Rating (Amps) | |
| Differential Travel | |
| Features | |
| Lead Style | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Overtravel | |
| Pretravel | |
| Release Force | |
| Switch Function | |
| Tape & Reel | |
| Termination Style | |
| Voltage Rating |

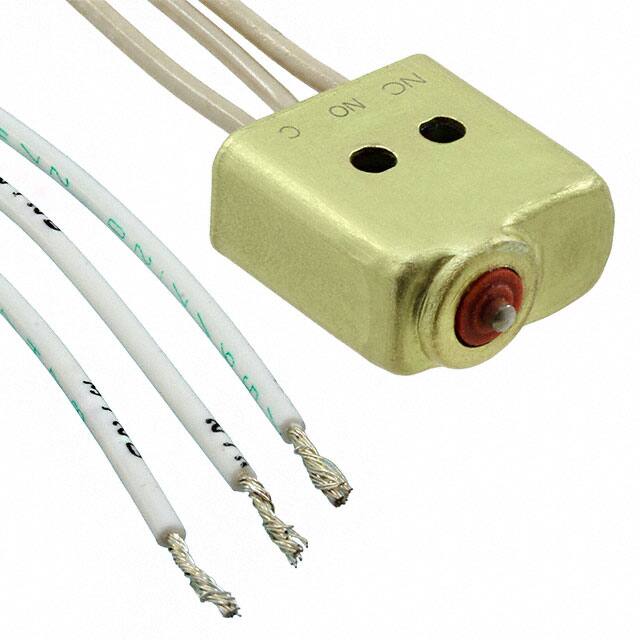

This Honeywell 1XE301 is a limit switch designed for snap action with an SPDT (Single Pole Double Throw) circuit. It is rated for a current of 1A at 28V DC and features wire leads for termination. The switch is designed for chassis mounting and operates within a wide temperature range of -54°C to 105°C.
Key mechanical specifications include a pretravel of 0.050" (1.27mm), an operating force between 141 ~ 482gf, a release force of 113gf, and an overtravel of 0.004" (0.1mm). The differential travel is 0.050" (0.13mm). The actuator type is a round pin plunger.
This component is compliant with RoHS3 standards and has a Moisture Sensitivity Level (MSL) of 1. Its REACH status is unaffected. The switch is suitable for various industrial applications requiring reliable limit sensing.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage for the 1XE301 switch is 28 V.
The operating temperature range is -54°C to 105°C.
The current rating is 1A (DC).
The 1XE301 switch uses chassis mount.
The termination style is wire leads.
