| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,500 pcs
|
2500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Length | |
| Actuator Style | |
| Actuator Type | |
| Bushing Thread | |
| Circuit | |
| Contact Form | |
| Contact Plating | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Ingress Protection | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Panel Cutout Dimensions | |
| Switch Function | |
| Tape & Reel | |
| Termination Style | |
| Voltage Rating |

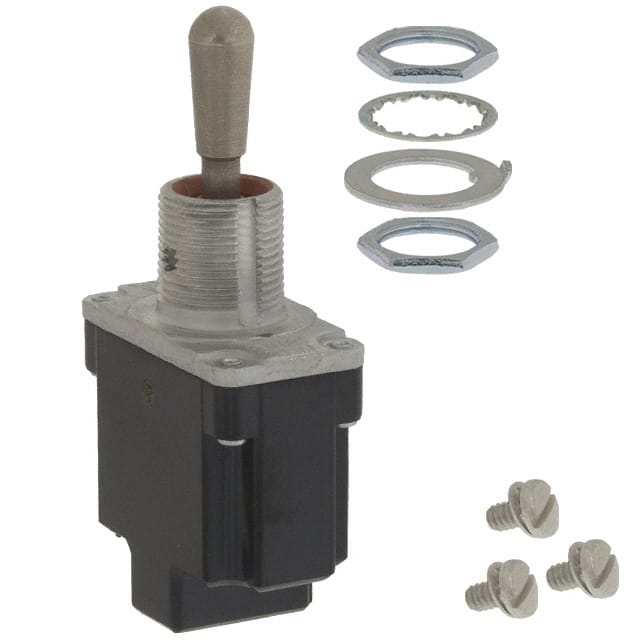

The Honeywell 1TL1-2 is a military-grade toggle switch from the MICRO SWITCH TL Series, qualified to MIL-DTL-3950 specifications. It is designed for demanding applications requiring high reliability, including environments with mechanical shock, vibration, and temperature extremes.
This switch features a Single Pole Single Throw (SPST) circuit with a non-illuminated, standard round paddle actuator. It has a current rating of 15A at 125V AC and a voltage rating of 277V AC / 250V DC. The operating temperature range is -65 °C to 71 °C.
Designed for panel mounting, the 1TL1-2 has a 15/32-32 bushing thread and screw terminals for termination. Its ingress protection is rated as Environment Sealed, making it suitable for applications with dust, splashing, or hose-directed water. The contact plating is Silver Cadmium Oxide.
This robust toggle switch is well-suited for military, aerospace, and other demanding applications where reliable performance and long operating life are essential.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-65 °C to 71 °C
125 V
15 A
Panel Mount
SPST
Yes, RoHS3 Compliant
