1SX280LN2F43E1VG The Intel 1SX280LN2F43E1VG is a System on Chip (SoC) combining a quad-core ARM Cortex-A53 processor at 1.5GHz with FPGA fabric containing 2800K logic elements. It offers 688 I/O ports and extensive connectivity options in a 1760-BGA package.
Mfr Part #:

1SX280LN2F43E1VG

Available from 1 distributors
Mfr Name: Intel
Intel
The Intel 1SX280LN2F43E1VG is a System on Chip (SoC) combining a quad-core ARM Cortex-A53 processor at 1.5GHz with FPGA fabric containing 2800K logic elements. It offers 688 I/O ports and extensive connectivity options in a 1760-BGA package.
✓ Total Stock: 19,500 pcs

1SX280LN2F43E1VG Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
19,500 pcs
On Request
19500 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1SX280LN2F43E1VG Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Architecture
Connectivity
Core Processor
Mounting Type
Number of Cores
Number of I/O
Operating Temperature
Peripherals
Primary Attributes
RAM Size
Speed
Supplier Device Package
Supplier Package
View Similar Products (0)

1SX280LN2F43E1VG Description

Short technical summary and product information.

The Intel 1SX280LN2F43E1VG is a high-performance System on Chip (SoC) from the Stratix 10 SX series, integrating a quad-core ARM Cortex-A53 MPCore processor running at 1.5GHz with FPGA fabric comprising 2800K logic elements. It includes 256KB of RAM and supports a wide range of connectivity interfaces such as EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, and USB OTG. With 688 I/O ports and peripherals including DMA and WDT, this SoC is designed for demanding applications in industrial automation, telecommunications, embedded systems, automotive electronics, and medical devices.

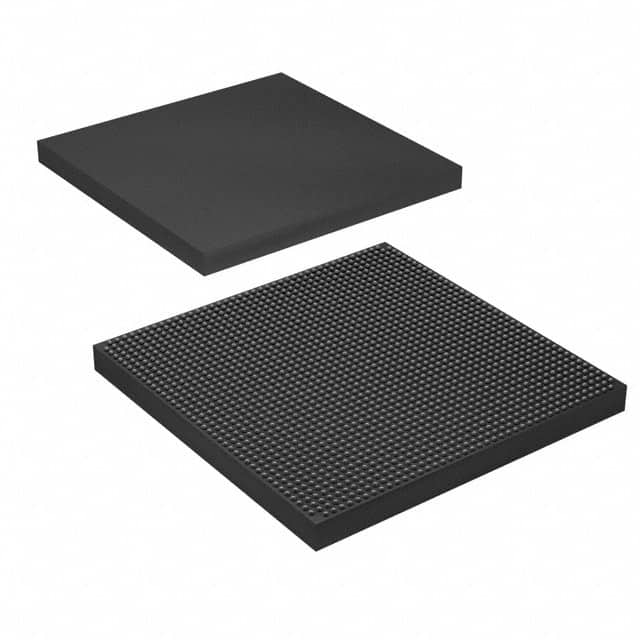

The device operates over a temperature range of 0°C to 100°C (TJ) and is housed in a 1760-BBGA, FCBGA package measuring 42.5x42.5mm. It is RoHS3 compliant and REACH unaffected, with an MSL rating of 3 (168 hours). Intel provides a comprehensive suite of development tools, including SDKs, HDKs, reference designs, and technical support to accelerate product development.

1SX280LN2F43E1VG Quick Information

Product Type: System on Chip (SoC)
Series: Stratix 10 SX
Canonical Name: Intel 1SX280LN2F43E1VG System on Chip (SoC)
Subcategory: FPGA SoC

1SX280LN2F43E1VG Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): MSL 3 (168 Hours)
REACH Status: REACH Unaffected

1SX280LN2F43E1VG Features

  • Quad ARM Cortex-A53 processor at 1.5GHz.
  • 2800K logic elements for FPGA fabric.
  • 688 I/O ports for extensive connectivity.
  • Supports multiple interfaces including Ethernet and USB.
  • Operating temperature range 0°C to 100°C.

1SX280LN2F43E1VG Applications

  • Ideal for industrial automation systems.
  • Used in telecommunications base stations.
  • Suitable for embedded computing devices.
  • Applied in automotive ADAS and infotainment.
  • Used in medical imaging equipment.

1SX280LN2F43E1VG FAQs

7 frequently asked questions generated from this part’s specifications.
What is the core processor of the 1SX280LN2F43E1VG?

Quad ARM Cortex-A53 MPCore with CoreSight at 1.5GHz.

What is the operating temperature range?

0°C to 100°C (TJ).

What package does this SoC come in?

1760-BBGA, FCBGA (42.5x42.5mm).

Is the 1SX280LN2F43E1VG RoHS compliant?

Yes, RoHS3 Compliant (unverified).

How many logic elements does the FPGA have?

2800K logic elements.

What connectivity interfaces are supported?

EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, USB OTG.

What is the RAM size?

256KB.
