Mfr Part #:

1SX280HN1F43E2VG

Mfr Name: Intel

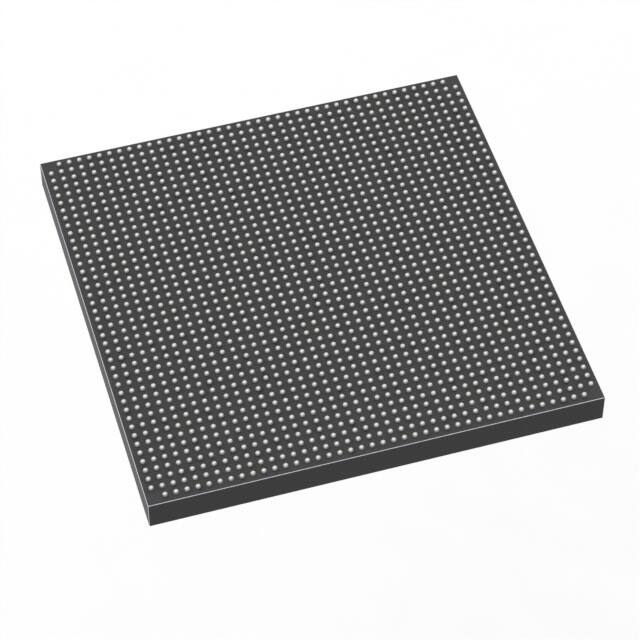

Intel Stratix 10 SoC FPGA featuring a quad ARM Cortex-A53 MPCore processor at 1.5GHz, 256KB RAM, and 2800K logic elements in a 1760-FBGA package.

✓ Total Stock: 4,000 pcs

1SX280HN1F43E2VG Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Flip Electronics ✓ Non-Authorised Inventory information	4,000 pcs On Request	4000 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

1SX280HN1F43E2VG Description

Short technical summary and product information.

The Intel Stratix 10 1SX280HN1F43E2VG is a high-performance System-on-Chip (SoC) FPGA that combines a quad ARM Cortex-A53 MPCore processor with a large FPGA fabric. The processor core runs at 1.5GHz and includes 256KB of RAM, while the FPGA provides 2800K logic elements for custom hardware acceleration. The device supports a wide range of connectivity interfaces including Ethernet, USB OTG, I²C, SPI, UART/USART, and MMC/SD/SDIO, making it suitable for complex embedded systems.

This SoC FPGA is designed for applications requiring both software processing and hardware flexibility, such as networking, communications, industrial automation, and aerospace. The integrated DMA and watchdog timer peripherals enhance system reliability and performance. The device operates over a temperature range of 0°C to 100°C (TJ) and is housed in a 1760-FBGA package with a 42.5x42.5mm footprint, mounted via surface mount technology.

The Stratix 10 family leverages Intel's Hyperflex core architecture for improved performance and efficiency. This particular variant includes the FPGA fabric with 2800K logic elements, enabling complex digital logic designs. The package is a 1760-ball BGA/FCBGA, providing ample I/O for high-bandwidth applications.

1SX280HN1F43E2VG Quick Information

Product Type: System-on-Chip (SoC) FPGA

Series: Stratix 10

Canonical Name: Intel Stratix 10 1SX280HN1F43E2VG System-on-Chip (SoC) FPGA

Subcategory: FPGA SoC

1SX280HN1F43E2VG Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

1SX280HN1F43E2VG Features

Quad ARM Cortex-A53 processor at 1.5GHz.
FPGA fabric with 2800K logic elements.
Supports Ethernet, USB OTG, and SPI connectivity.
1760-FBGA surface mount package.
Operating temperature range 0°C to 100°C.

1SX280HN1F43E2VG Applications

Ideal for high-performance embedded computing.
Used in networking and communications systems.
Suitable for industrial automation and control.
Applicable in aerospace and defense systems.

1SX280HN1F43E2VG FAQs

7 frequently asked questions generated from this part’s specifications.

What is the core processor in this SoC FPGA?

It features a quad ARM Cortex-A53 MPCore with CoreSight running at 1.5GHz.

How much RAM is integrated?

The device includes 256KB of RAM.

What is the logic element count of the FPGA?

The FPGA fabric contains 2800K logic elements.

What package does this part come in?

It is supplied in a 1760-FBGA package measuring 42.5x42.5mm.

What is the operating temperature range?

The operating temperature range is 0°C to 100°C (TJ).

What connectivity interfaces are supported?

It supports EBI/EMI, Ethernet, I²C, MMC/SD/SDIO, SPI, UART/USART, and USB OTG.

Is this device RoHS compliant?

It is listed as RoHS3 compliant, but this is unverified and should be confirmed.

Category	System On Chip (SoC)
Manufacturer Name	Intel
Architecture	MCU, FPGA
Connectivity	EBI/EMI, Ethernet, I²C, MMC/SD/SDIO, SPI, UART/USART, USB OTG
Core Processor	Quad ARM Cortex-A53 MPCore with CoreSight
Lead Style	Bga
Mounting Type	Surface Mount
Operating Temperature	0°C ~ 100°C (TJ)
Peripherals	DMA, WDT
Primary Attributes	FPGA - 2800K Logic Elements
RAM Size	256KB
Speed	1.5GHz
Supplier Device Package	1760-FBGA (42.5x42.5)
