Mfr Part #:

1SNA164659R1000

Mfr Name: Entrelec

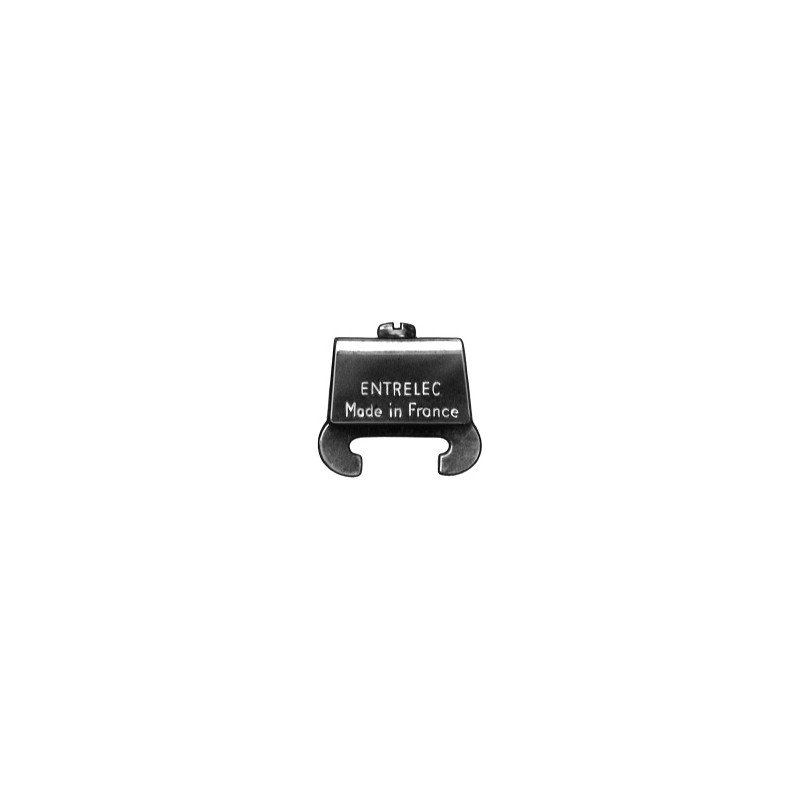

The Entrelec 1SNA164659R1000 is a BAH 12.2 End Stop designed for use with SNA Series accessories. It features a 7.1mm spacing and is suitable for mounting on various DIN rail types.

✓ Total Stock: 38 pcs

$ Price Range: $2.13

1SNA164659R1000 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Partservice ✓ Non-Authorised Inventory information	38 pcs On Request	38 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

1SNA164659R1000 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Entrelec

View Similar Products (0)

1SNA164659R1000 Description

Short technical summary and product information.

The Entrelec 1SNA164659R1000 is an end stop accessory for terminal blocks, part of the SNA Series. It is designed to provide a secure end-point for mounting on standard DIN rails, including G32 (32 x 15 mm), TH35-7.5 (35 x 7.5 mm), and TH35-15 (35 x 15 mm) profiles according to IEC 60715 standards.

This end stop has a net width of 7.1 mm and a net height of 13 mm, with a depth of 20.5 mm. Each unit weighs approximately 7 grams. The product is supplied in a bag, with a standard package quantity of 50 pieces.

Environmental compliance includes RoHS3 compliance and an MSL rating of 1 (Unlimited). REACH status is unaffected. The product is manufactured by Entrelec and is identified by the part number 1SNA164659R1000.

1SNA164659R1000 Quick Information

Product Type: End Stop

Series: SNA Series - Accessories

Canonical Name: Entrelec BAH 12.2 End Stops

Subcategory: End bracket for terminal block

1SNA164659R1000 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

1SNA164659R1000 Estimated Pricing

Qty	Low	High
1+	$2.13	$2.13

Estimated market price range - modelled values for guidance only, not live distributor offers.

1SNA164659R1000 Features

End stop for SNA Series accessories.
7.1mm spacing for terminal blocks.
Mounts on G32 and TH35 DIN rails.
Compact dimensions: 7.1mm W x 13mm H x 20.5mm D.
Supplied in bags of 50 units.

1SNA164659R1000 Applications

Suitable for DIN rail-mounted automation systems.
Used in electrical end stop applications.
Ideal for industrial control panel wiring.
Suitable for passive connection accessories.
Designed for mounting on IEC 60715 compliant rails.

1SNA164659R1000 FAQs

4 frequently asked questions generated from this part’s specifications.

What is the spacing for the Entrelec 1SNA164659R1000 end stop?

The spacing for the Entrelec 1SNA164659R1000 end stop is 7.1 mm.

What types of DIN rails can the 1SNA164659R1000 be mounted on?

The 1SNA164659R1000 can be mounted on G32 (32 x 15 mm), TH35-7.5 (35 x 7.5 mm), and TH35-15 (35 x 15 mm) mounting rails according to IEC 60715.

What are the dimensions of the Entrelec 1SNA164659R1000 end stop?

The dimensions are 7.1 mm in width, 13 mm in height, and 20.5 mm in depth.

How is the Entrelec 1SNA164659R1000 packaged?

The product is packed in a bag with 50 units per package.
