| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9 pcs
|
9 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connection Type | |
| Function | |
| Insulation Material | |
| Number of Levels |

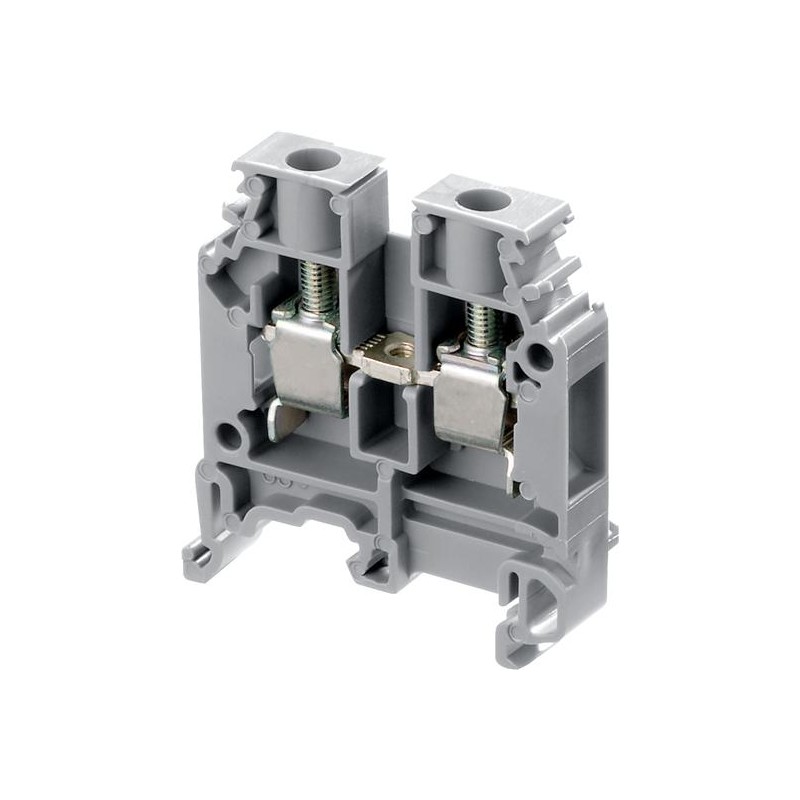

The Entrelec 1SNA115219R2600 is a feed-through terminal block designed for reliable electrical connections. It features a grey polyamide insulation material and utilizes screw clamp connections for both flexible and rigid wires, with a connecting capacity ranging from 0.5 to 10 mm².
This terminal block has a rated current of 41A and a rated voltage of 800V, with an impulse withstand voltage of 8000V. It is designed for mounting on various DIN rails, including G32, TH35-7.5, and TH35-15. The operating temperature range is -55 to +110 °C.
Key specifications include a pollution degree of 3 and a degree of protection of IP10 for the main terminals. The flammability rating is V0 according to UL94. The unit dimensions are 44.5 mm in height, 40.5 mm in length, and 8 mm in width, with a weight of 12.8 g.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.84 | $1.84 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated current for the main circuit is 41 A.
The rated voltage for the main circuit is 800 V.
It can connect flexible wires from 0.5 to 6 mm², rigid wires from 0.5 to 10 mm², and insulated ferrules of 6 mm².
The operating temperature range is -55 to +110 °C.
It can be mounted on G32 (32 x 15 mm), TH35-7.5 (35 x 7.5 mm), or TH35-15 (35 x 15 mm) mounting rails according to IEC 60715.
The flammability rating is V0 according to UL94.
