| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,034 pcs
|
3034 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Bidirectional Channels | |
| Capacitance @ Frequency | |
| Current | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Power Line Protection | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Voltage |
The 1SMB17CAT3G is a bidirectional TVS (transient voltage suppression) diode designed to protect sensitive electronics from voltage transients. It features a peak pulse power rating of 600W and a peak pulse current of 21.7A. The reverse standoff voltage is 17V, and the clamping voltage is 27.6V.
This device is intended for general-purpose applications where transient protection is required. It is not designed for power line protection. The typical capacitance is 490 pF at 1 MHz, which may be considered in high-speed signal applications.
The diode is packaged in a surface-mount DO-214AA (SMB) package, suitable for automated assembly. It operates over a junction temperature range of -65°C to 150°C. The device is RoHS compliant and REACH unaffected (unverified).
The reverse standoff voltage (Vrwm) is 17 V.
The clamping voltage is 27.6 V at 21.7 A peak pulse current.
The peak pulse current (Ipp) is 21.7 A.
The peak pulse power is 600 W.
The capacitance is 490 pF at 1 MHz.

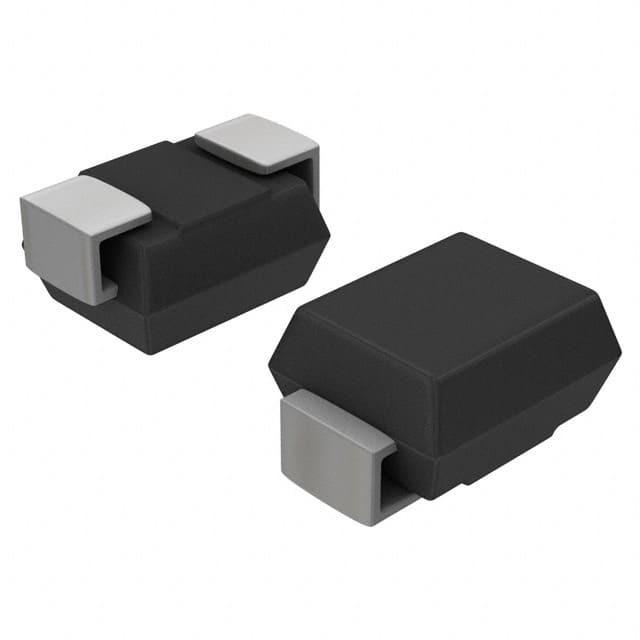

The device is available in a surface-mount SMB (DO-214AA) package.
The operating junction temperature range is -65°C to 150°C.
