| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
347 pcs
|
347 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
347 pcs
|
347 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Channels | |
| Halogen Free | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| SVHC Present | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Type |

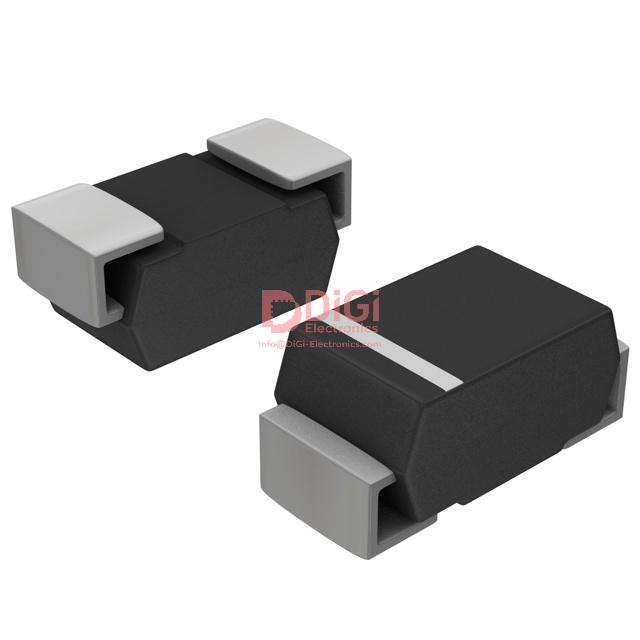

The 1SMA13CAT3G is a Transient Voltage Suppressor (TVS) Diode manufactured by On Semiconductor. This device is designed for general purpose applications and offers protection against transient voltage events.
Key electrical specifications include a reverse standoff voltage of 13V, a minimum breakdown voltage of 14.4V, and a maximum clamping voltage of 21.5V at a peak pulse current of 18.6A (10/1000µs). It has a peak pulse power rating of 400W and a capacitance of 455pF at 1MHz.
The TVS diode operates within a temperature range of -65°C to 150°C (TJ). It is housed in a surface mount DO-214AC, SMA package, making it suitable for integration into compact electronic designs.
This component is classified as a Zener type, bidirectional TVS diode with one channel. It is not designed for power line protection.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The reverse standoff voltage is 13V.
The minimum breakdown voltage is 14.4V.
The maximum clamping voltage is 21.5V at 18.6A peak pulse current.
The peak pulse current rating is 18.6A at 10/1000µs.
The package is DO-214AC (SMA) surface-mount.
Yes, the device is bidirectional.
The peak pulse power rating is 400W.
