| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
360 pcs
|
360 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Power Dissipation (Max) | |
| SVHC Present | |
| Tape & Reel |

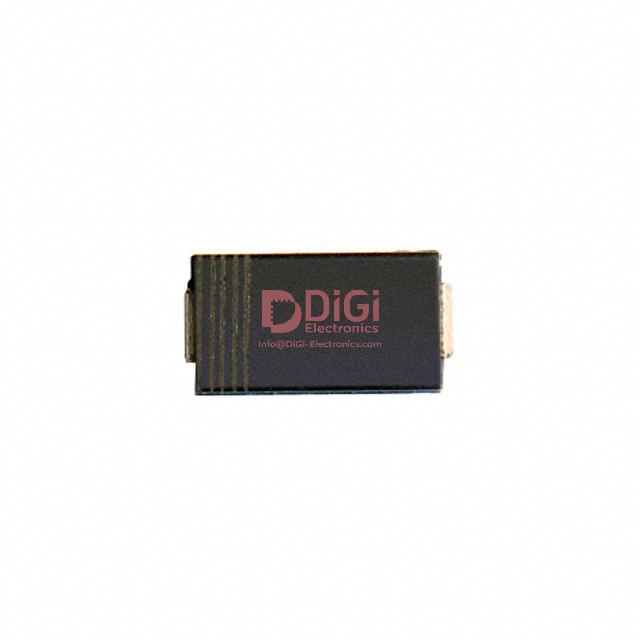

This Zener diode from Microchip Technology, part number SMAJ4747AE3/TR13, offers a nominal Zener voltage of 20V with a tolerance of ±5%. It has a maximum power dissipation of 2W and is suitable for various electronic circuits requiring voltage regulation.
The diode features a low reverse leakage current of 5 µA at 15.2V and a maximum forward voltage of 1.2V at 200 mA. Its impedance at the Zener test current is a maximum of 22 Ohms.
Designed for surface mounting, this component comes in a DO-214AC (SMA) package. The operating temperature range is from -55°C to 150°C, making it robust for different environmental conditions. The diode is supplied in tape and reel packaging.
Key specifications include a 20V Zener voltage, 2W power rating, and ±5% tolerance. Its surface mount capability and wide operating temperature range make it a versatile choice for voltage regulation applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal Zener voltage is 20 V.
The maximum power dissipation is 2 W.
The tolerance is ±5%.
The reverse leakage current is 5 µA at 15.2 V.
The maximum forward voltage is 1.2 V at 200 mA.
The operating temperature range is -55°C to 150°C.
It is in a DO-214AC, SMA package for surface mounting.
