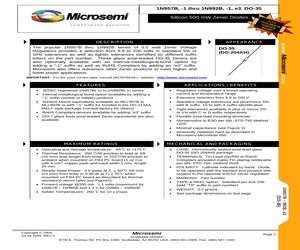

1N970B-1JANTX The Microsemi 1N970B-1JANTX is a single Zener diode with a 24V nominal voltage and 5% tolerance. It features a 500mW power dissipation and is housed in a DO-35 package.
Mfr Part #:

1N970B-1JANTX

Available from 1 distributors
Mfr Name: MSC
MSC
The Microsemi 1N970B-1JANTX is a single Zener diode with a 24V nominal voltage and 5% tolerance. It features a 500mW power dissipation and is housed in a DO-35 package.
✓ Total Stock: 134 pcs
$ Price Range: $0.02

1N970B-1JANTX Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
134 pcs
On Request
134 pcs On Request 1 On Request On Request 0536 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1N970B-1JANTX Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Configuration
Military Grade
Mounting Type
Operating Temperature Range
Power Dissipation
Reverse Current
Type
View Similar Products (0)

1N970B-1JANTX Description

Short technical summary and product information.

The 1N970B-1JANTX from Microsemi is a single Zener diode designed for voltage regulation applications. It offers a stable Zener voltage of 24V with a tight tolerance of 5%. The diode can handle a power dissipation of up to 500mW.



This component is designed for through-hole mounting and comes in a standard DO-35 package, making it suitable for various electronic circuits. The operating temperature range is specified from -65C to 175C, indicating its suitability for demanding environments. The reverse leakage current is a maximum of 0.005 mA at 24V.



Key electrical characteristics include a typical knee impedance of 33 Ohms at a Zener test current of 5.2mA. The component type is classified as a Voltage Regulator, highlighting its primary function in circuit design.

1N970B-1JANTX Quick Information

Product Type: Zener Diode
Canonical Name: 1N970B-1JANTX Zener Diode
Subcategory: Zener Diode

1N970B-1JANTX Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1N970B-1JANTX Estimated Pricing

Qty Low High
1+ $0.02 $0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

1N970B-1JANTX Features

  • 24V nominal Zener voltage.
  • 5% voltage tolerance.
  • 500mW power dissipation.
  • DO-35 package for through-hole mounting.
  • Wide operating temperature range.

1N970B-1JANTX Applications

  • Used for voltage regulation.
  • Suitable for power supply circuits.
  • Applicable in signal conditioning.
  • Can be used in overvoltage protection.

1N970B-1JANTX FAQs

7 frequently asked questions generated from this part’s specifications.
What is the Zener voltage of the 1N970B-1JANTX?

24V nominal with 5% tolerance.

What is the power dissipation rating?

500mW.

What is the package type?

DO-35 through-hole.

What is the operating temperature range?

-65°C to 175°C.

What is the knee impedance?

33 ohms typical at 5.2mA test current.

What is the reverse leakage current?

Maximum 0.005mA at 24V.

What is the mounting type?

Through hole.
