| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,750 pcs
|
3750 pcs | On Request | 1 | On Request | On Request | 05+17 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Style | |
| Operating Temperature Range | |
| Package / Case | |
| SVHC Present |

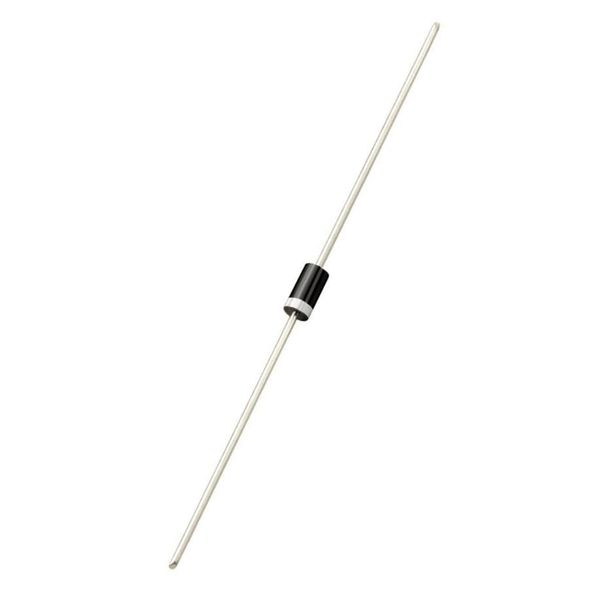

The 1N5817T from Diodes Incorporated is a Schottky diode designed for various electronic applications. It offers a peak reverse voltage of 20V and a forward continuous current rating of 1A.
The diode exhibits a typical forward voltage drop of 0.75V at 3A and a maximum reverse leakage current of 1000µA. Its operating temperature range spans from -65°C to 125°C, making it suitable for a wide array of environmental conditions.
Packaged in a DO-41 case, the 1N5817T is designed for through-hole mounting. The standard package quantity is 5000 units, typically supplied on a reel.
This component is part of the 1N5817 series and falls under the Schottky Diodes & Rectifiers category. Its specifications make it a reliable choice for power rectification and switching applications where low forward voltage drop and fast switching speeds are essential.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The peak reverse voltage is 20 V.
The maximum forward continuous current is 1 A.
The typical forward voltage drop is 0.75 V at 3A.
The operating temperature range is -65 C to 125 C.
The 1N5817T is supplied in a DO-41 package.
The 1N5817T is mounted using the through-hole method.
