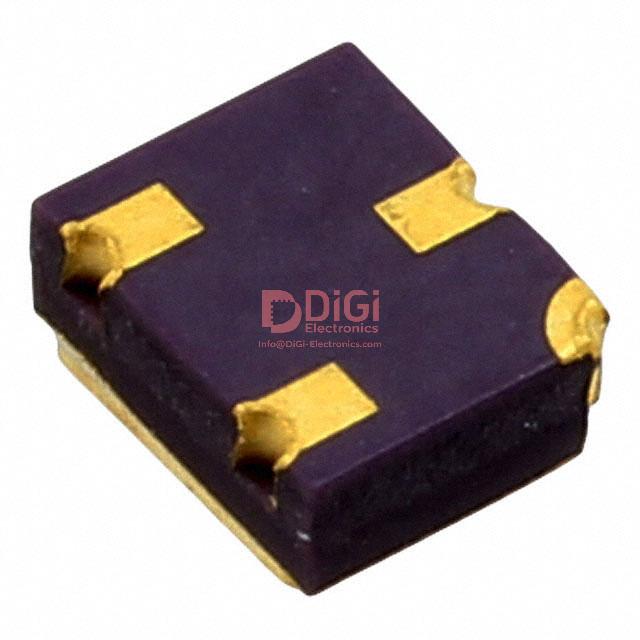

1N5712UBCA The Microsemi 1N5712UBCA is a Schottky diode array with a 16V reverse voltage rating and 75mA average rectified current per diode. It is designed for surface mount applications.
Mfr Part #:

1N5712UBCA

Available from 1 distributors
Mfr Name: Microsemi Corporation
Microsemi Corporation
The Microsemi 1N5712UBCA is a Schottky diode array with a 16V reverse voltage rating and 75mA average rectified current per diode. It is designed for surface mount applications.
✓ Total Stock: 40 pcs
$ Price Range: $0.99

1N5712UBCA Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
40 pcs
On Request
40 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1N5712UBCA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Diode Configuration
Mounting Type
Speed
Supplier Device Package
Technology
View Similar Products (0)

1N5712UBCA Description

Short technical summary and product information.

The 1N5712UBCA from Microsemi Corporation is a Schottky diode array configured as a single pair with a common anode. It is rated for a maximum reverse voltage of 16V and can handle an average rectified current of 75mA per diode.



This component features a small signal speed and a low reverse leakage current of 150 nA at 16V. The forward voltage is a maximum of 1V at 35mA. It operates within a junction temperature range of -65°C to 150°C.



The 1N5712UBCA is designed for surface mounting and comes in a 3-SMD, No Lead package. The supplier device package is designated as UB. Its base product number is 1N5712.



Environmental compliance includes RoHS3 compliance and a Moisture Sensitivity Level (MSL) of 1 (Unlimited). REACH status is listed as unaffected.

1N5712UBCA Quick Information

Product Type: Diode Array
Canonical Name: 1N5712UBCA Diode Array Schottky 16V 75mA
Subcategory: Rectifier

1N5712UBCA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1N5712UBCA Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

1N5712UBCA Features

  • Schottky diode array with common anode.
  • Rated for 16V reverse voltage.
  • 75mA average rectified current.
  • Surface mount 3-SMD, No Lead package.
  • Operates from -65°C to 150°C.

1N5712UBCA Applications

  • Suitable for general rectification.
  • Used in power supply circuits.
  • Ideal for signal processing applications.
  • Component for voltage clamping.

1N5712UBCA FAQs

7 frequently asked questions generated from this part’s specifications.
What is the reverse voltage rating of the 1N5712UBCA?

The maximum reverse voltage is 16V.

What is the average rectified current per diode?

75mA per diode.

What is the forward voltage drop at 35mA?

Maximum 1V at 35mA.

What is the package type and mounting style?

Surface mount in a 3-SMD no lead package (UB).

What is the operating temperature range?

-65°C to 150°C junction temperature.

What is the diode configuration?

1 pair common anode.

What is the reverse leakage current at 16V?

150 nA at 16V.
