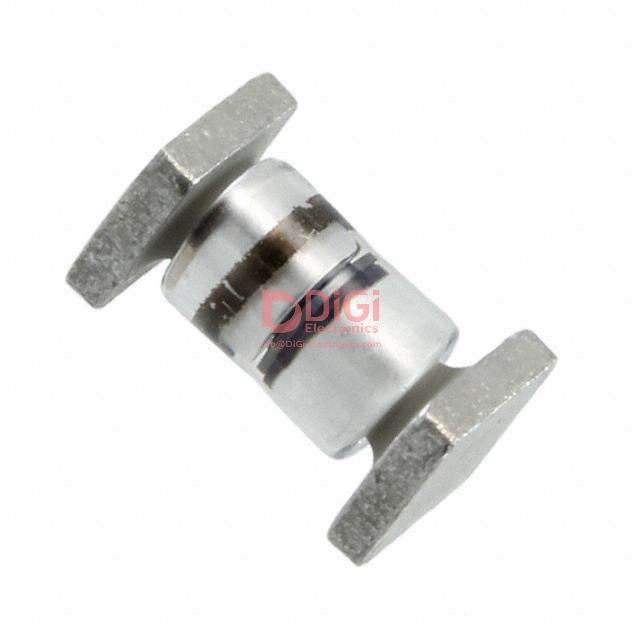

1N5619 The Microchip Technology JAN1N5619US is a general purpose diode with a 600V reverse voltage rating and 1A average rectified current. It is designed for surface mount applications.
Mfr Part #:

1N5619

Available from 1 distributors
Mfr Name: Sensitron Semiconductor
Sensitron Semiconductor
The Microchip Technology JAN1N5619US is a general purpose diode with a 600V reverse voltage rating and 1A average rectified current. It is designed for surface mount applications.
✓ Total Stock: 152 pcs
$ Price Range: $0.99

1N5619 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
152 pcs
On Request
152 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1N5619 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Capacitance @ Vr, F
Grade
Mounting Type
Reverse Recovery Time (trr)
Speed
Supplier Device Package
Technology
View Similar Products (0)

1N5619 Description

Short technical summary and product information.

The JAN1N5619US from Microchip Technology is a general purpose diode designed for various electronic applications. It features a maximum reverse voltage of 600V and an average rectified current of 1A.



The forward voltage drop is a maximum of 1.6V at 3A. This diode has a fast recovery speed, specified as less than or equal to 500ns for currents greater than 200mA, with a reverse recovery time of 250ns. The reverse leakage current is 500 nA at 600V.



This component has a capacitance of 25pF at 12V and 1MHz. It is qualified to MIL-PRF-19500/429 military standards and operates as a standard technology device.



The JAN1N5619US is packaged in a D-5A surface mount package (SQ-MELF, A) and is supplied in bulk.

1N5619 Quick Information

Product Type: Diode
Canonical Name: JAN1N5619US General Purpose Diode
Subcategory: General Purpose Diode

1N5619 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1N5619 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

1N5619 Features

  • 600V maximum reverse voltage.
  • 1A average rectified current.
  • Fast recovery time under 500ns.
  • Surface mount D-5A package.
  • Military qualification MIL-PRF-19500/429.

1N5619 Applications

  • Suitable for general purpose rectification.
  • Ideal for power supply circuits.
  • Used in signal processing applications.
  • Applicable in military systems.

1N5619 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the maximum reverse voltage for the JAN1N5619US diode?

The maximum reverse voltage (Vr) for the JAN1N5619US diode is 600 V.

What is the average rectified current rating of the JAN1N5619US?

The JAN1N5619US has an average rectified current (Io) rating of 1A.

What is the forward voltage drop of the JAN1N5619US at 3A?

The maximum forward voltage (Vf) for the JAN1N5619US at 3A is 1.6 V.

What is the reverse recovery time for the JAN1N5619US diode?

The reverse recovery time (trr) for the JAN1N5619US diode is 250 ns.

How is the JAN1N5619US diode packaged?

The JAN1N5619US diode is supplied in bulk packaging and features a surface mount D-5A (SQ-MELF, A) package.

Does the JAN1N5619US meet military specifications?

Yes, the JAN1N5619US is qualified to MIL-PRF-19500/429 military standards.
